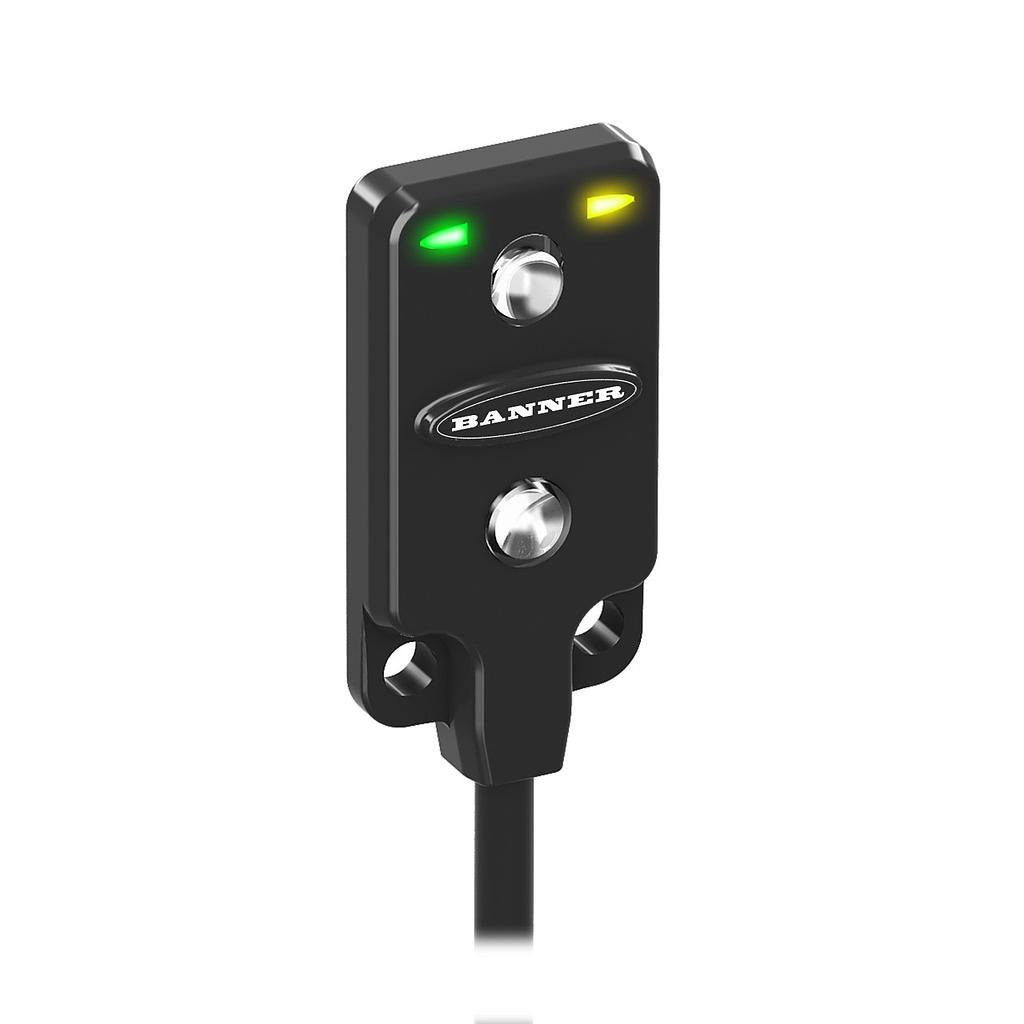

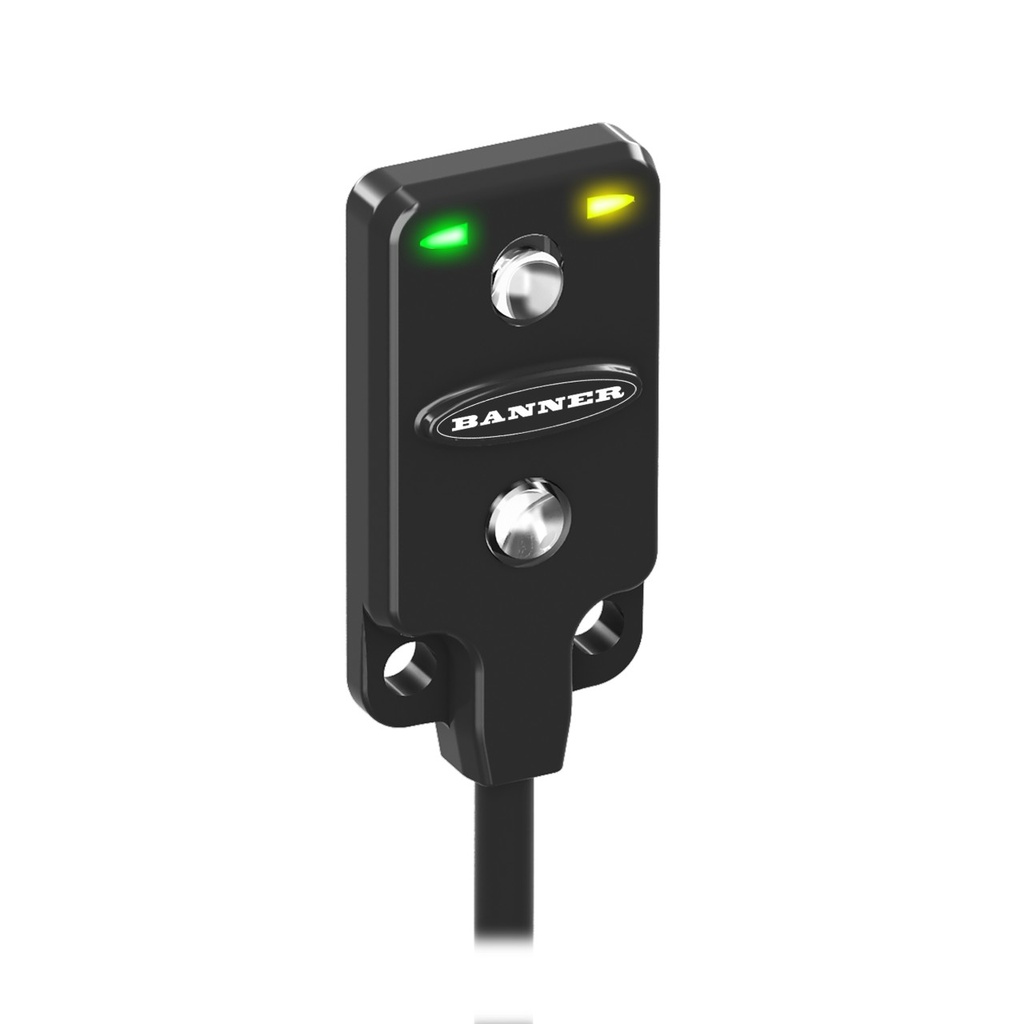

VS2 Series: Convergent (VS2RN5CV15Q)

https://www.branom.com/web/image/product.template/32796/image_1920?unique=c26756c
(0 review)

Features:

  • VS2 Series: Convergent
  • Focal Point: 15 mm
  • Input: 10 to 30 V dc
  • Output: NPN Dark Operate
  • Pico M8 3-pin Pigtail QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: MABS
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular
  • Max Sensing Distance: 15 mm
  • Sensing Mode (Detailed): Convergent
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 80% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 1 ms ON/0.5 ms OFF
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 140.00 140.0 USD $ 140.00
