  3. 6IN PIGTL 5-PIN MINI ADJUST FIXED FIELD (Q60VR3AF2000QPMA10)
Public Pricelist (v2)

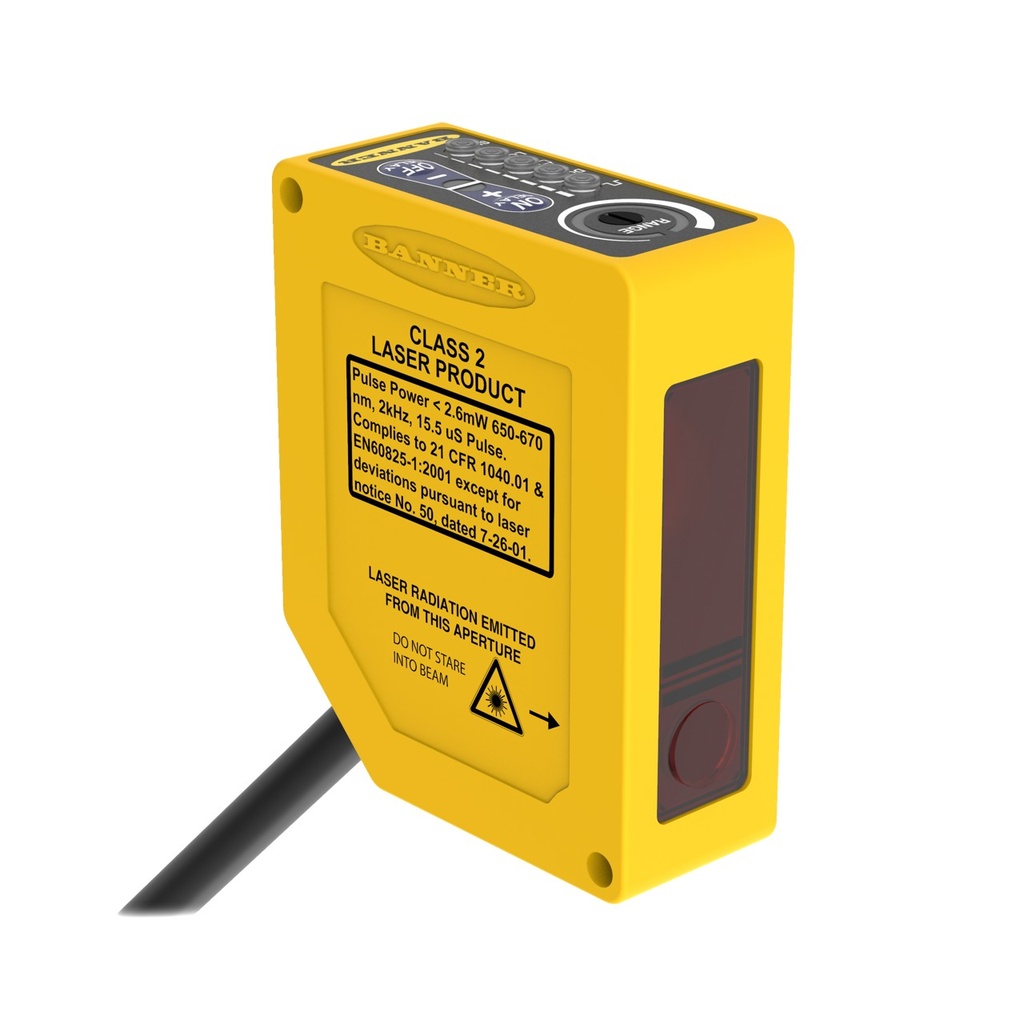

Representative photo. Please check item description for details.

6IN PIGTL 5-PIN MINI ADJUST FIXED FIELD (Q60VR3AF2000QPMA10)

https://www.branom.com/web/image/product.template/32786/image_1920?unique=c26756c
(0 review)

Features:

  • Q60VR3AF2000QPMA10 6IN PIGTL 5-PIN MINI ADJUST FIXED FIELD
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 12-250 VDC or 24-250 VAC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 15 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail PUR QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 322.00 322.0 USD $ 322.00

$ 322.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
