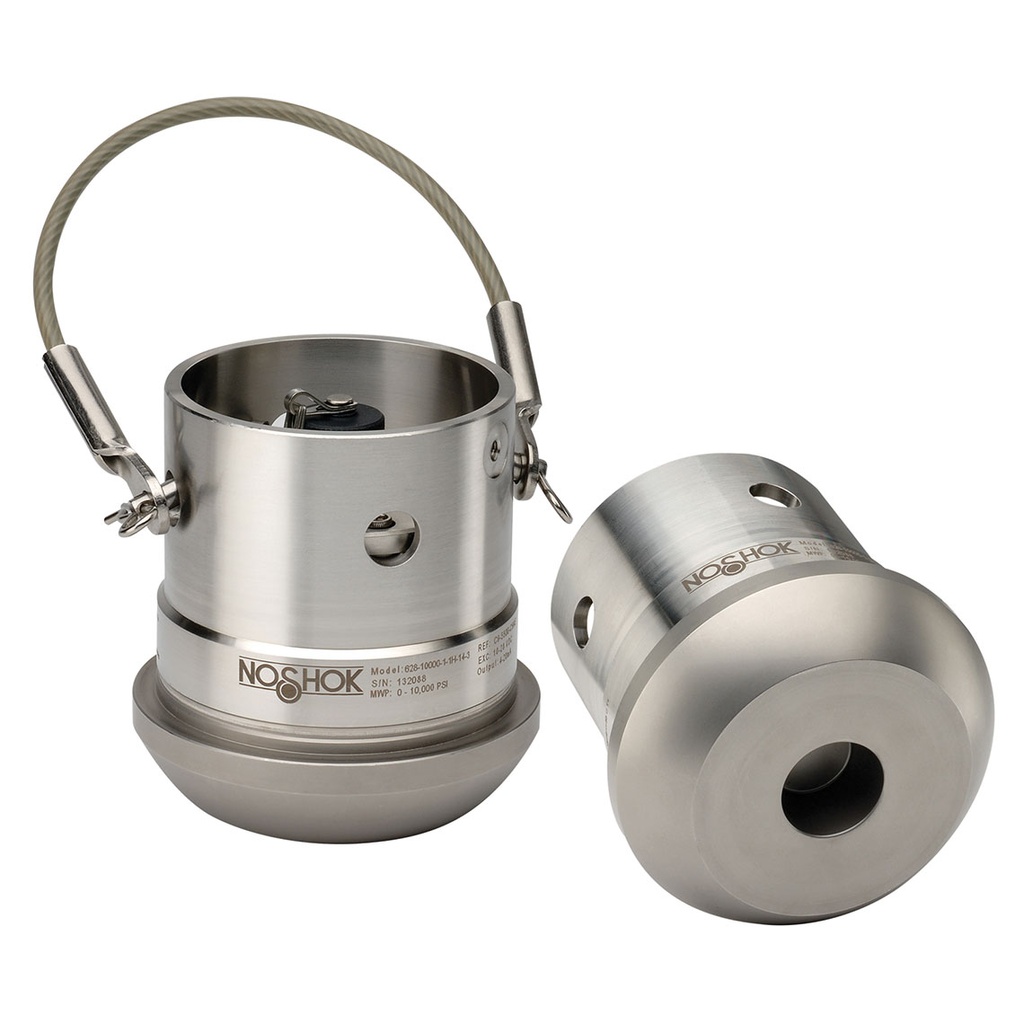

628 Series Intrinsically Safe Hammer Union Pressure Transmitter, 0 psig to 10,000 psig
- Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
- Current output
- Inconel X-750 wetted parts
Applications:
- Acidizing
- Choke & kill manifold
- Fracturing & cementing
- Mud logging & mud pumps
- Oil field & offshore
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
- Current output
- Inconel X-750 wetted parts
Applications:
- Acidizing
- Choke & kill manifold
- Fracturing & cementing
- Mud logging & mud pumps
- Oil field & offshore
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 10000.0 |
| Process Connection Type | Wing Union (#1502) |
| Pressure Range | 0 psig to 10,000 psig |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 10000 psig |
| Min Operating Temperature | -40 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 2" |
| Accuracy | ±0.25% full scale (BFSL |
| Case Material | 316 SS |
| Wetted Material | Inconel X-750 |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-28 VDC |
| Ingress Protection | IP67 |
| Wiring | H |
| Response Time | ≤2 ms |
| Electrical Connector Type | 6-pin Bayonet |
