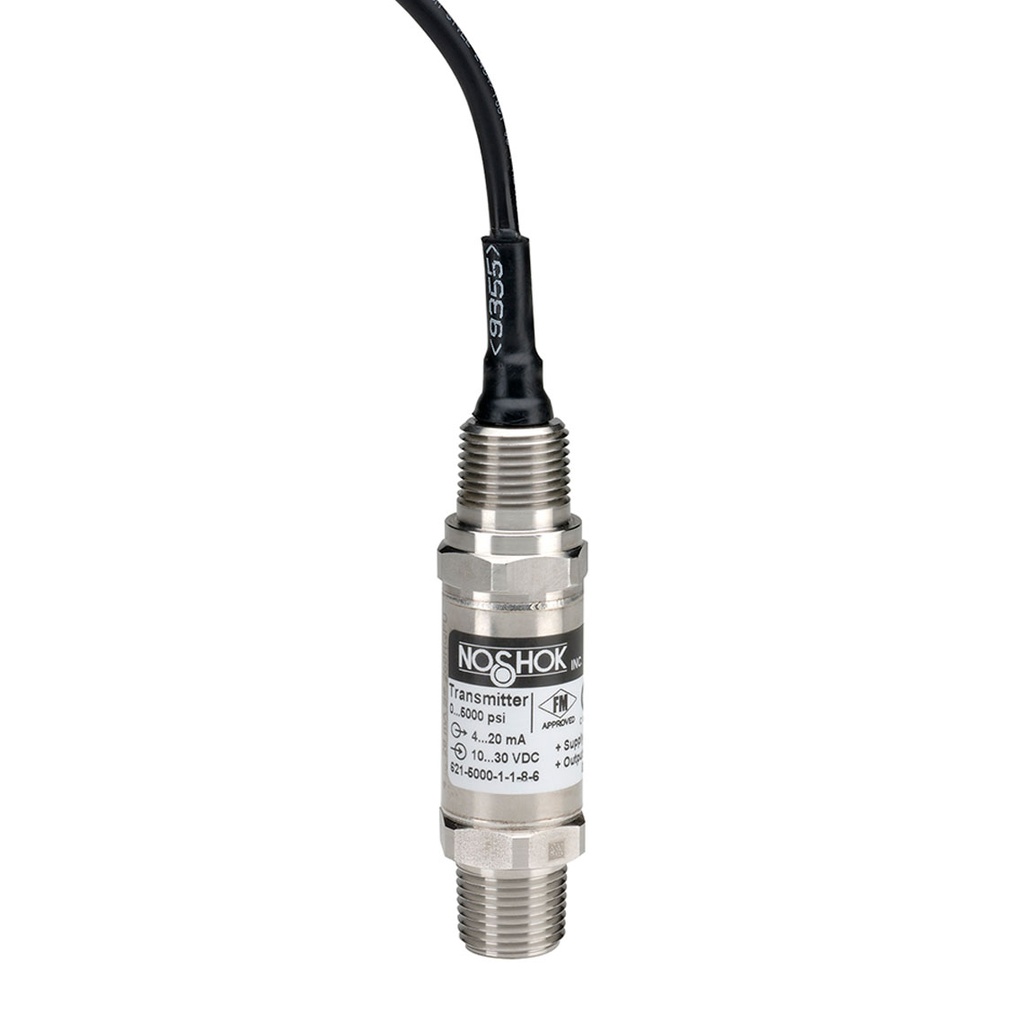

621/622 Series Explosion-Proof Pressure Transmitter, Hazardous Location

Model	[621] Standard, [622] Front Flush
Unit of Measure	inHg/psig, psig, psia
Pressure Range	[30vac] -30 inHg to 0 psig, [30/30] -30 inHg to 30 psig, [30/60] -30 inHg to 60 psig, [30/100] -30 inHg to 100 psig, [30/200] -30 inHg to 200 psig, [5] 0 psig to 5 psig, [10] 0 psig to 10 psig, [15] 0 psig to 15 psig, [30] 0 psig to 30 psig, [60] 0 psig to 60 psig, [100] 0 psig to 100 psig, [150] 0 psig to 150 psig, [200] 0 psig to 200 psig, [300] 0 psig to 300 psig, [500] 0 psig to 500 psig, [1000] 0 psig to 1,000 psig, [1500] 0 psig to 1,500 psig, [2000] 0 psig to 2,000 psig, [3000] 0 psig to 3,000 psig, [5000] 0 psig to 5,000 psig, [6000] 0 psig to 6,000 psig, [8000] 0 psig to 8,000 psig, [10000] 0 psig to 10,000 psig, [15000] 0 psig to 15,000 psig, [15A] 0 psia to 15 psia, [100A] 0 psia to 100 psia, [200A] 0 psia to 200 psia
Output Signal	[1] 4 mA to 20 mA, 2-wire, [2] 20 Vdc to 5 Vdc, 3-wire, [3] 1 Vdc to 5 Vdc, 3-wire, Low Power, [5] 0 Vdc to 10 Vdc, 3-wire, [31] 0.5 Vdc to 4.5 Vdc, 3-wire, Low Power
Process Connection	[2] 1/4" NPT Male, [8] 1/2" NPT Male, [11] G 1/2 B (Model 621), [11] G 1/2 B (Model 622), [13] G 1 B
Electrical Connection	[6] 1/2" NPT Male Conduit w/ 6 foot integral cable, [37] 1/2" NPT Male Conduit w/ 6 foot flying lead and epoxy seal
Optional Threaded Orifice	Without, [ST8] SS Threaded Orifice
Optional Cable/Lead	Without, [20] 20 Foot, [30] 30 Foot
Accuracy	[1] ±0.25% Full Scale
