Representative photo. Please check item description for details.

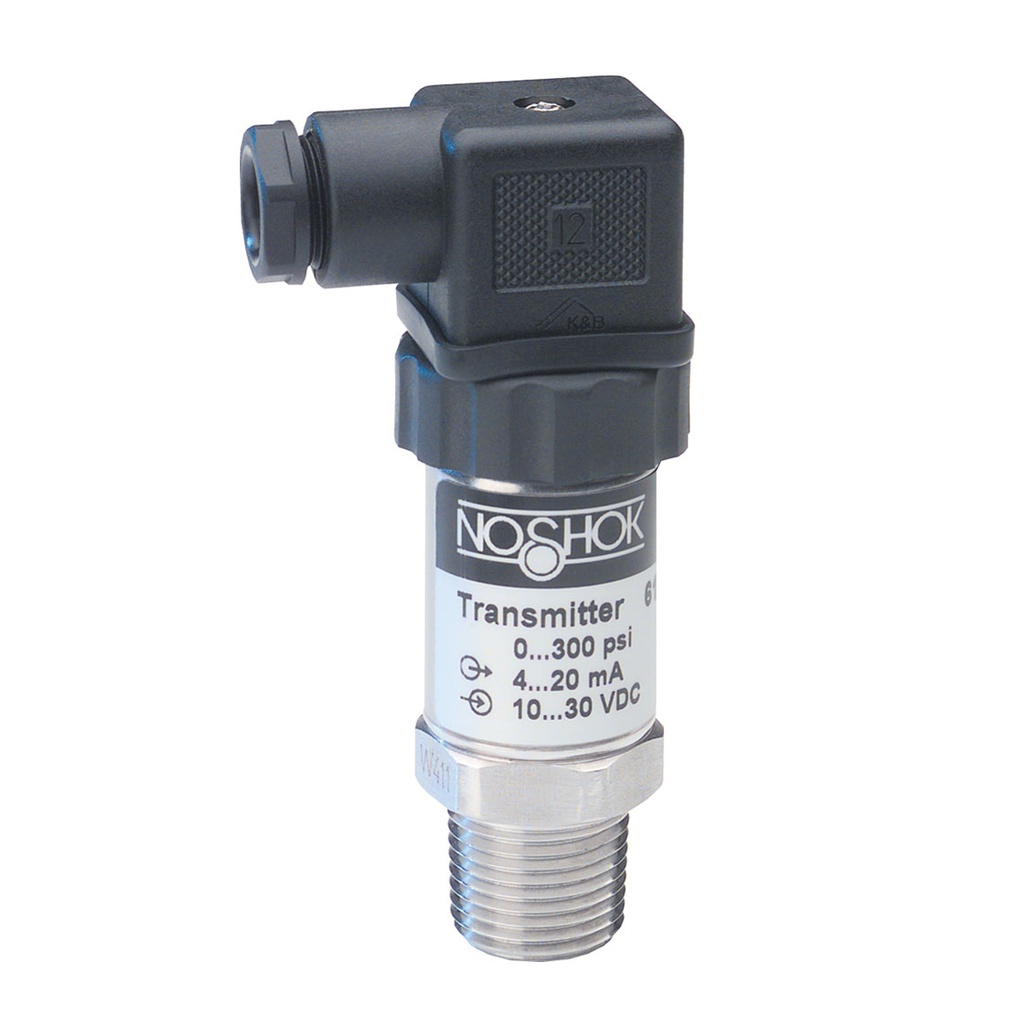

615 Series High Accuracy Heavy-Duty Pressure Transducer, Internal Diaphragm, -30 inHg to 100 psig
This product will be discontinued March 31, 2024. Please use the Noshok PT Series Crossover Tool to find the new equivalent part number.
- Vacuum ranges through 0 psig to 145,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
Applications:
- Construction
- Hydraulics & pneumatics
- Laboratory & test equipment
- Power generation
- Stamping & forming presses
- Transportation
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product will be discontinued March 31, 2024. Please use the Noshok PT Series Crossover Tool to find the new equivalent part number.
- Vacuum ranges through 0 psig to 145,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
Applications:
- Construction
- Hydraulics & pneumatics
- Laboratory & test equipment
- Power generation
- Stamping & forming presses
- Transportation
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Measurement Maximum | 100.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | -30 inHg to 100 psig |
| Min Operating Pressure | -30 inHg |
| Max Operating Pressure | 100 psig |
| Min Operating Temperature | -20 °F |
| Max Operating Temperature | 212 °F |
| Process Connection Size | 1/4" |
| Accuracy | ±0.125% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | -30 |
| Output Communication Protocol | 0-10 VDC, 3-wire |
| Input Voltage | 10-30VDC |
| Ingress Protection | IP65 |
| Response Time | ≤1 ms |
| Electrical Connector Type | DIN EN 175301-803 Form A |
