612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 psig to 30 psig

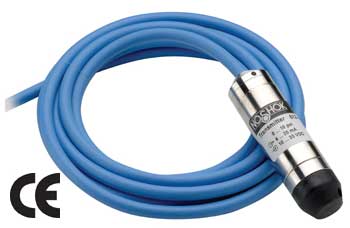

Representative photo. Please check item description for details.

612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 psig to 30 psig

https://www.branom.com/web/image/product.template/551834/image_1920?unique=c26756c
(0 review)
  • Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
  • Current and voltage outputs available
  • 316 Stainless Steel, Polyamide and Polyurethane wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement

Applications

  • Irrigation
  • Tank monitoring
  • Water & wastewater
  • Well head measurement

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


$ 1,102.61 1102.61 USD $ 1,102.61

$ 1,102.61

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Product Unit of Measure
  • Max Operating Temperature
  • Accuracy
  • Wetted Material
  • Measurement Minimum
  • Output Communication Protocol
  • Input Voltage
  • Ingress Protection
  • Response Time
  • Electrical Connector Type
  • Cable Length (ft)
  • Cord/Cable Length

This combination does not exist.

Contact Us

Share

  • Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
  • Current and voltage outputs available
  • 316 Stainless Steel, Polyamide and Polyurethane wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement

Applications

  • Irrigation
  • Tank monitoring
  • Water & wastewater
  • Well head measurement

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Measurement Maximum 30.0
Process Connection Type Nose Cone
Pressure Range 0 psig to 30 psig
Min Operating Pressure 0 psig
Max Operating Pressure 30 psig
Min Operating Temperature 14 °F
Product Unit of Measure psig
Max Operating Temperature 122 °F
Accuracy ±0.25% full scale (BFSL)
Wetted Material 316 SS
Measurement Minimum 0
Output Communication Protocol 4-20 mA, 2-wire
Input Voltage 10-30 VDC
Ingress Protection IP68
Response Time ≤1 ms
Electrical Connector Type PUR Cable
Cable Length (ft) 30.0
Cord/Cable Length 30 ft
