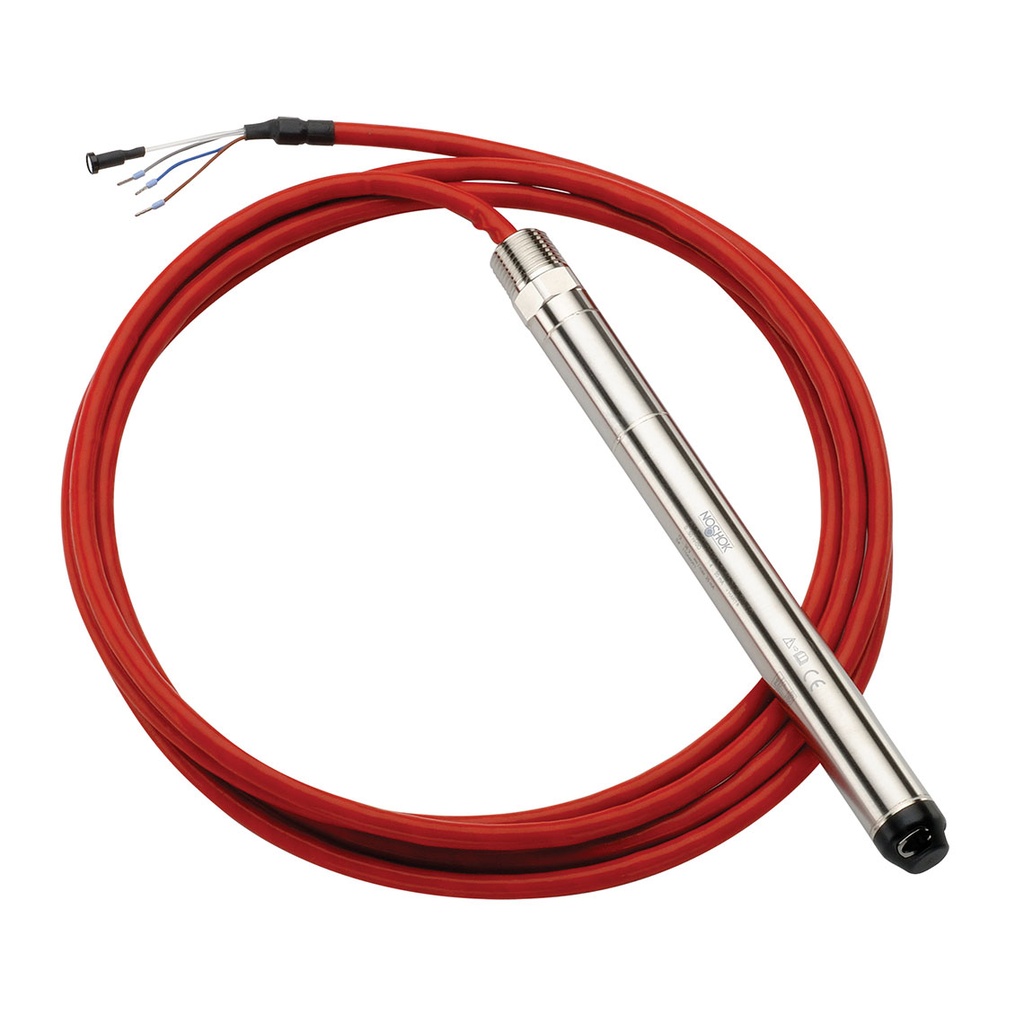

Representative photo. Please check item description for details.
611 Series Small Diameter Submersible Level Transmitter, 0 psig to 25 psig, 150' Std PUR Cable, Cable Clamp
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
Applications:
- Well head measurement
- Groundwater monitoring
- Level measurement in open bodies of water
- Sewage lift and pumping stations
- Setting ponds and rainwater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
Applications:
- Well head measurement
- Groundwater monitoring
- Level measurement in open bodies of water
- Sewage lift and pumping stations
- Setting ponds and rainwater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Enviromag | |
|---|---|
| Cable Length | 150 ft |
| Others | |
|---|---|
| Measurement Maximum | 25.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 psig to 25 psig (57.7 ftH2O) |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 25 psig |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 122 °F |
| Accuracy | ±1.0 of span |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 4-20 mA |
| Ingress Protection | IP68 |
| Vibration | 4 g |
| Electrical Connector Type | PUR Cable |
| Max Submersion Depth | 325 ft |
| Proof Pressure | 5x Range |
| Cable Type | 150' Standard PUR Cable |
| Cable Length (ft) | 150.0 |
| Cord/Cable Length | 150 ft |
