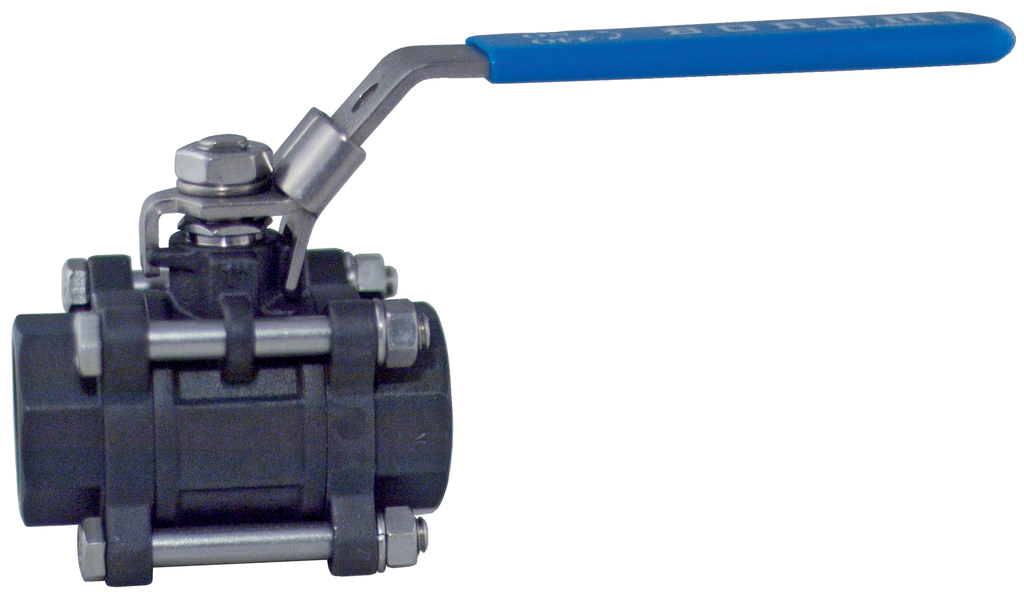

610LL / 611LL / 612LL North America Series Full Port 3 pc. Carbon Steel Ball Valve w/ Locking Lever
610LL / 611LL / 612LL Bonomi North America Series 3-piece ball valve, with latch locking lever, full port.
Features
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F + 440°F.
Blow-out proof stem, adjustable multi-layer V-ring stem packaging.
TFM 1600 seats, PTFE packing and thrust washer.
Model Details
610 LL: FNPT THREADED - size 1/4” to 4”.
611 LL: SOCKET WELD - size 1/4” to 4”.
612 LL: BUTT WELD - size 1/4” to 4”.
610LL / 611LL / 612LL Bonomi North America Series 3-piece ball valve, with latch locking lever, full port.
Features
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F + 440°F.
Blow-out proof stem, adjustable multi-layer V-ring stem packaging.
TFM 1600 seats, PTFE packing and thrust washer.
Model Details
610 LL: FNPT THREADED - size 1/4” to 4”.
611 LL: SOCKET WELD - size 1/4” to 4”.
612 LL: BUTT WELD - size 1/4” to 4”.
Specifications
| Model | [610LL] NPT Ends, [611LL] SW Ends, [612LL] BW Ends |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
