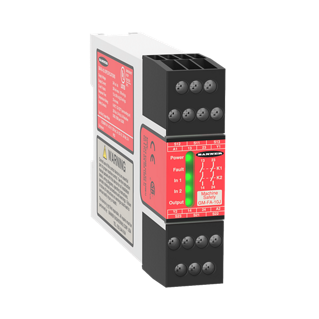

Safety Relay Module for Interlocks (GM-FA-10J)

https://www.branom.com/web/image/product.template/32490/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Relay Module for Interlocks
  • Supply Voltage: 24 V ac/dc
  • Safety Input: Interlocks with complementary contacts
  • Safety Output: 2 NO, 6 Amp
  • Aux Output: None
  • Terminal Block: Removable
  • Width: 22.5mm
  • Self-Checking Circuitry, Auto/Manual Reset
  • Max Operating Temperature: 50 °C
  • Power Consumption: 3 W / 3 VA
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Safe Output Rating: Relay - 6 A
  • Physical Dimensions: 84 x 22.5 x 118 mm
  • Supply Voltage: 24 VAC/dc +/- 15%
  • Safety Module Type: Gate Monitoring Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • SISTEMA: PFHd = 1.54 x 10-9
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 1 complementary or 2 x complementary (contact)
  • Terminal Type: Screw
  • Input Operation: Simultaneous within 3.0 s
  • Number of Safe Inputs: 2
  • Safety Input - Reset: 20 mA @ 12 VDC (dry contact only)
  • Output Configuration: 2 NO
  • Safety Mat: No
  • Input Resistance: 270 Ω max. per channel
  • Recovery Time: 250 ms
  • Response Time: ≤35 ms
  • Number of Stored Colors: 2
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 1,000,000 @ 250 VA
  • Feature: E-Stops/Rope Pulls: Yes
  • Feature: Expandable: No
  • Feature: Removable Terminals: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: Yes
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: No
  • Feature: Muting: No
  • Safety Input - Dual Channel (Dry Contact): 20-50 mA @ 15-30 VDC
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 50 mil

$ 460.00 460.0 USD $ 460.00

$ 460.00

Not Available For Sale
