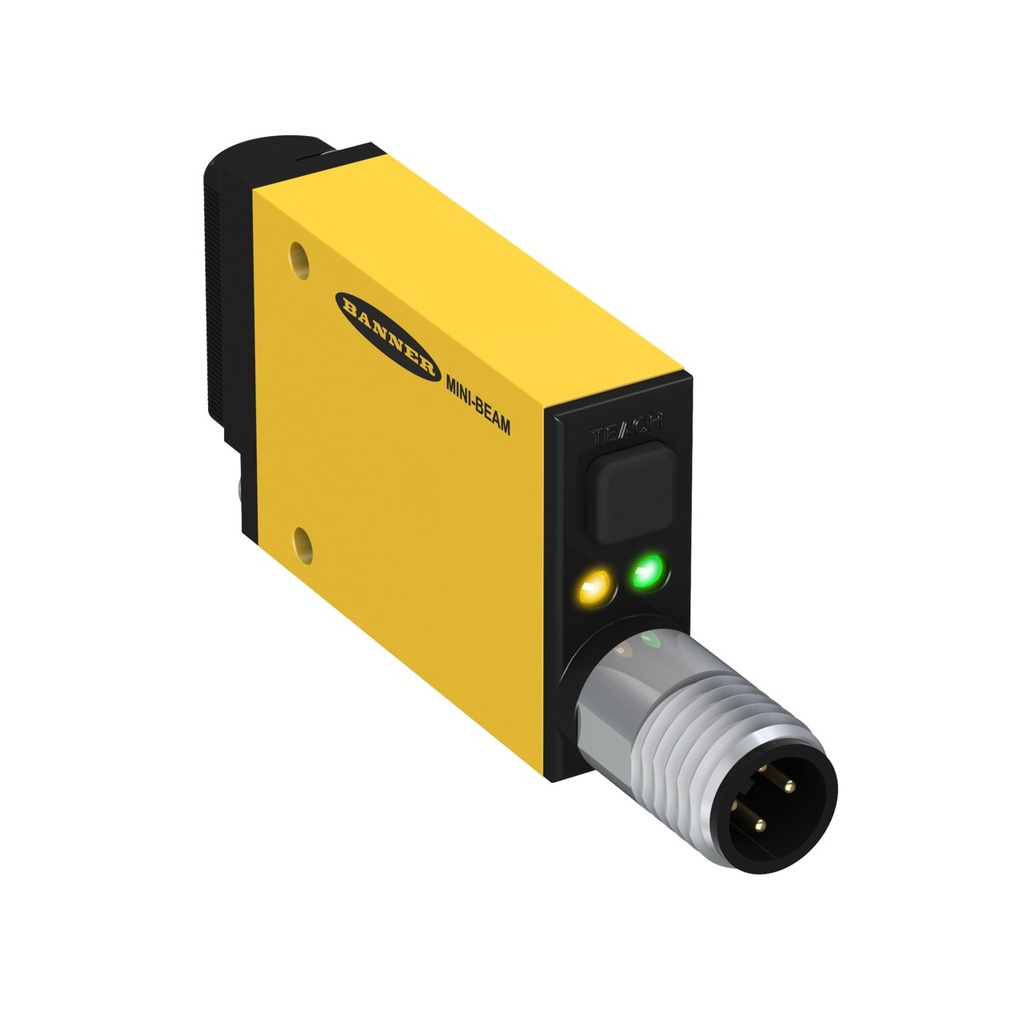

Representative photo. Please check item description for details.

W/DYN TCH VIS RED PLAS FIB MOD HIGH SP QD (SME312FPMHSQD-60585)

https://www.branom.com/web/image/product.template/32454/image_1920?unique=c26756c
(0 review)

Features:

  • SME312FPMHSQD-60585 W/DYN TCH VIS RED PLAS FIB MOD HIGH SP QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Housing Style: Rectangular
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: .15 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Feature: Crosstalk Avoidance: No
  • Indicator Type: Indicator LED
