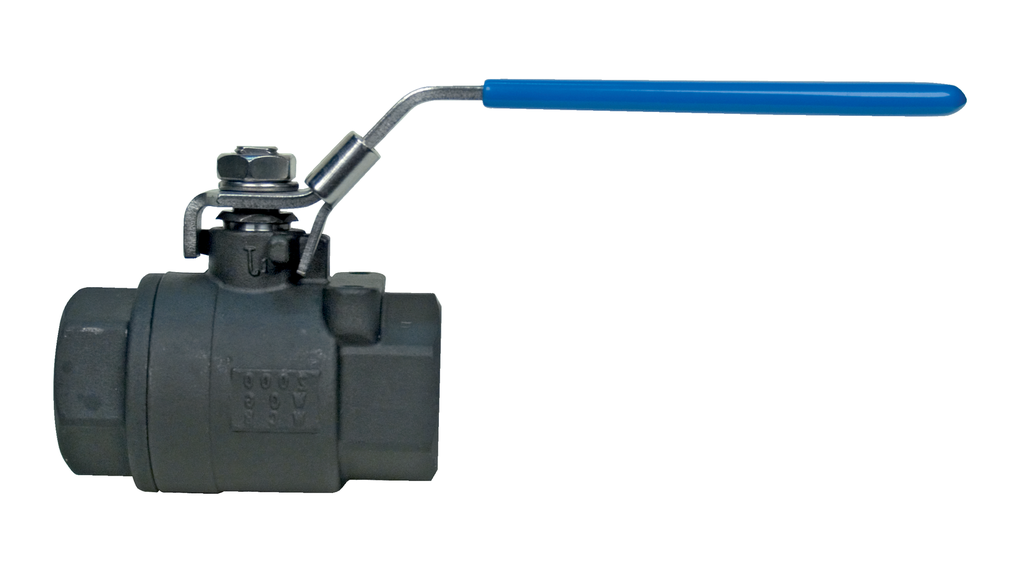

600LL North America Series Full Port Carbon Steel Ball Valve, FNPT Threaded, w/ Locking Device
600 LL Bonomi North America Series 2-piece carbon steel FNPT threaded ball valve with locking handle, full port vented ball.
Features
Working pressure is 2000 psi (1/4” to 1”), 1500 psi (1 1/4” to 2”) - 150 psi steam.
Temperature range -40°F to 450°F.
Self adjusting stem packing.
Blow-out proof stem design.
100% air tested under water at 80 psi.
Mounting pad for actuator.
ANSI B1.20.1 connections.
NACE MR 0175.
600 LL Bonomi North America Series 2-piece carbon steel FNPT threaded ball valve with locking handle, full port vented ball.
Features
Working pressure is 2000 psi (1/4” to 1”), 1500 psi (1 1/4” to 2”) - 150 psi steam.
Temperature range -40°F to 450°F.
Self adjusting stem packing.
Blow-out proof stem design.
100% air tested under water at 80 psi.
Mounting pad for actuator.
ANSI B1.20.1 connections.
NACE MR 0175.
Specifications
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
