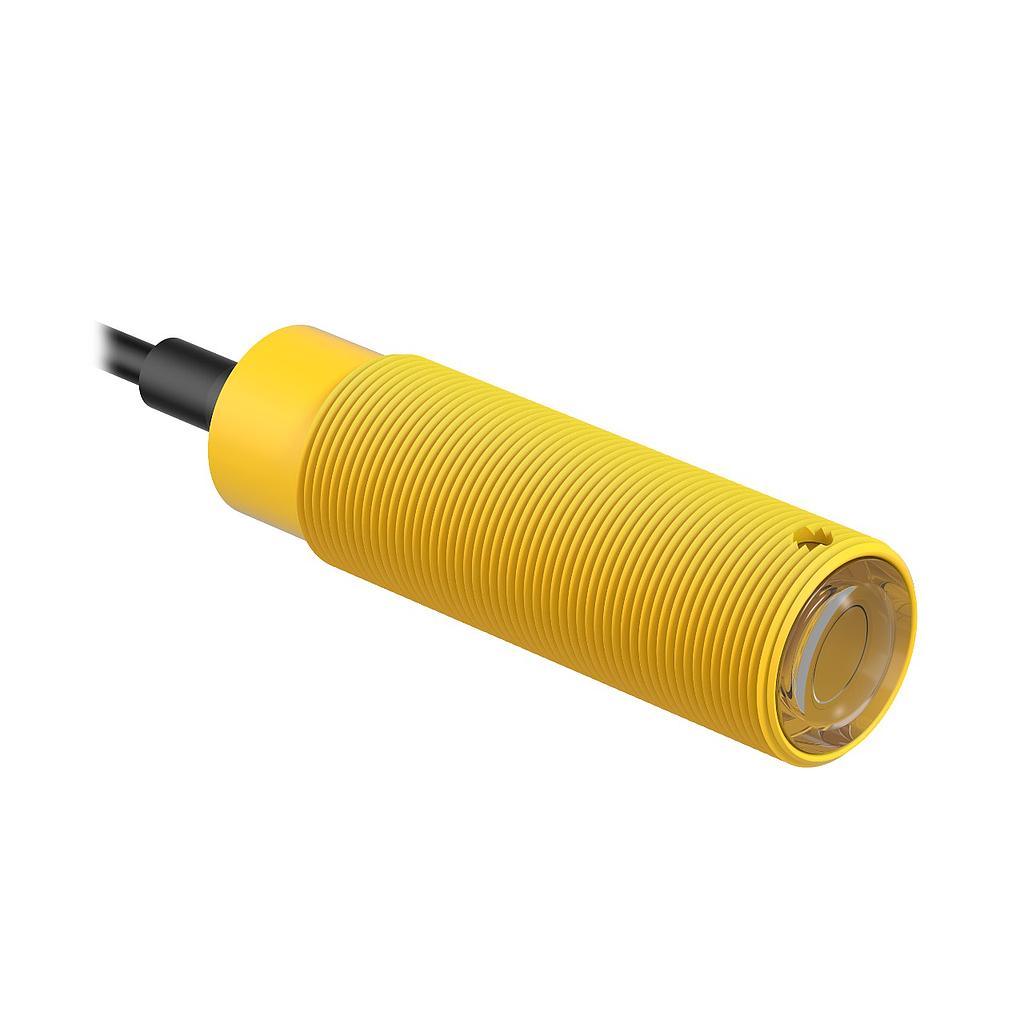

BARREL SENSOR WITH 600V CABLE (SM2A30PRLMC1)

https://www.branom.com/web/image/product.template/32374/image_1920?unique=c26756c
(0 review)

Features:

  • SM2A30PRLMC1 BARREL SENSOR WITH 600V CABLE
  • Power: AC
  • Min Operating Temperature: -40 °C
  • Lens Material: Acrylic
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 150000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 10 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 30
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 473.00 473.0 USD $ 473.00

$ 473.00

Not Available For Sale
