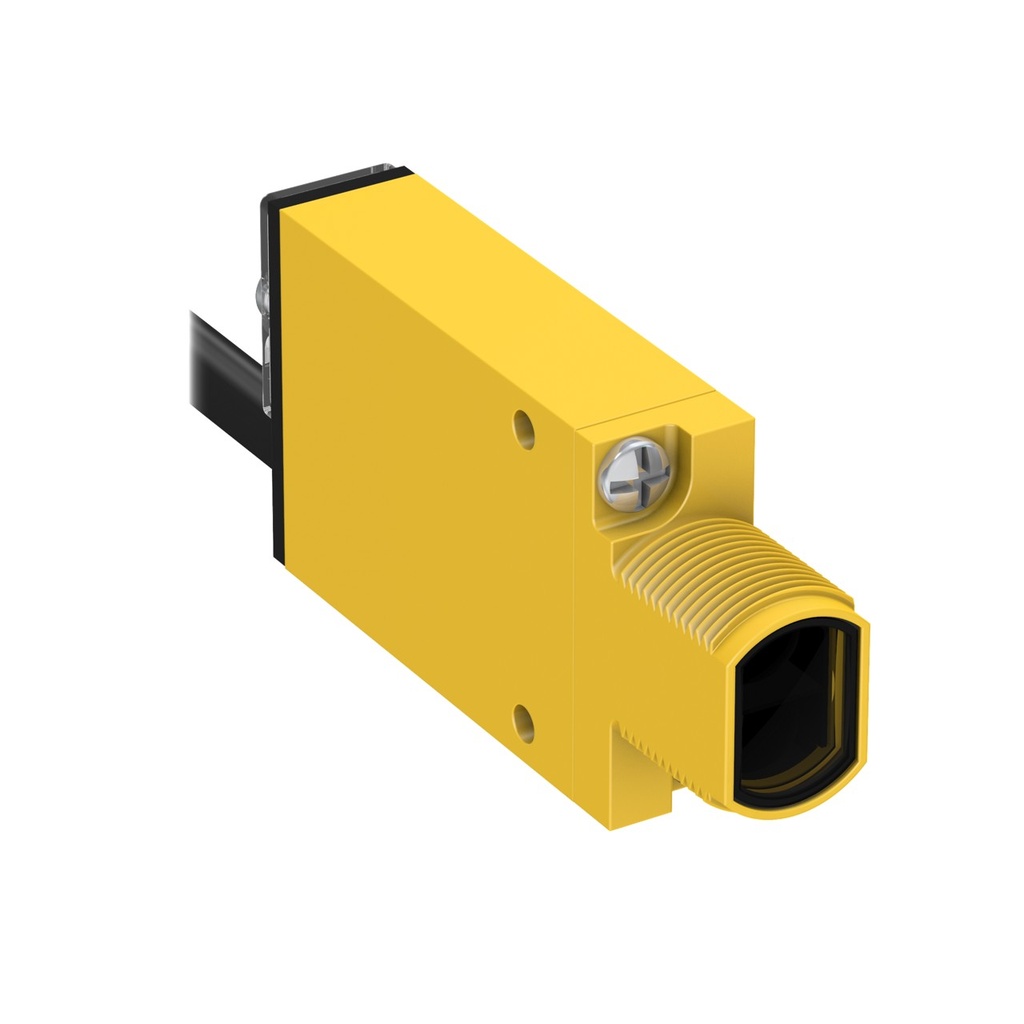

Representative photo. Please check item description for details.

MINI-BEAM UNIVERSAL: Diffuse (SMU315DQDP)

https://www.branom.com/web/image/product.template/32301/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM UNIVERSAL: Diffuse
  • Range: 380 mm
  • Input: 24-240V ac or 24-240V dc
  • Output: SPDT Electromechanical Relay
  • 6 in Pigtail QD Connector
  • Power: AC/DC Universal
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC/VDC
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 380 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 20 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: E/M Relay
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 251.00 251.0 USD $ 251.00
