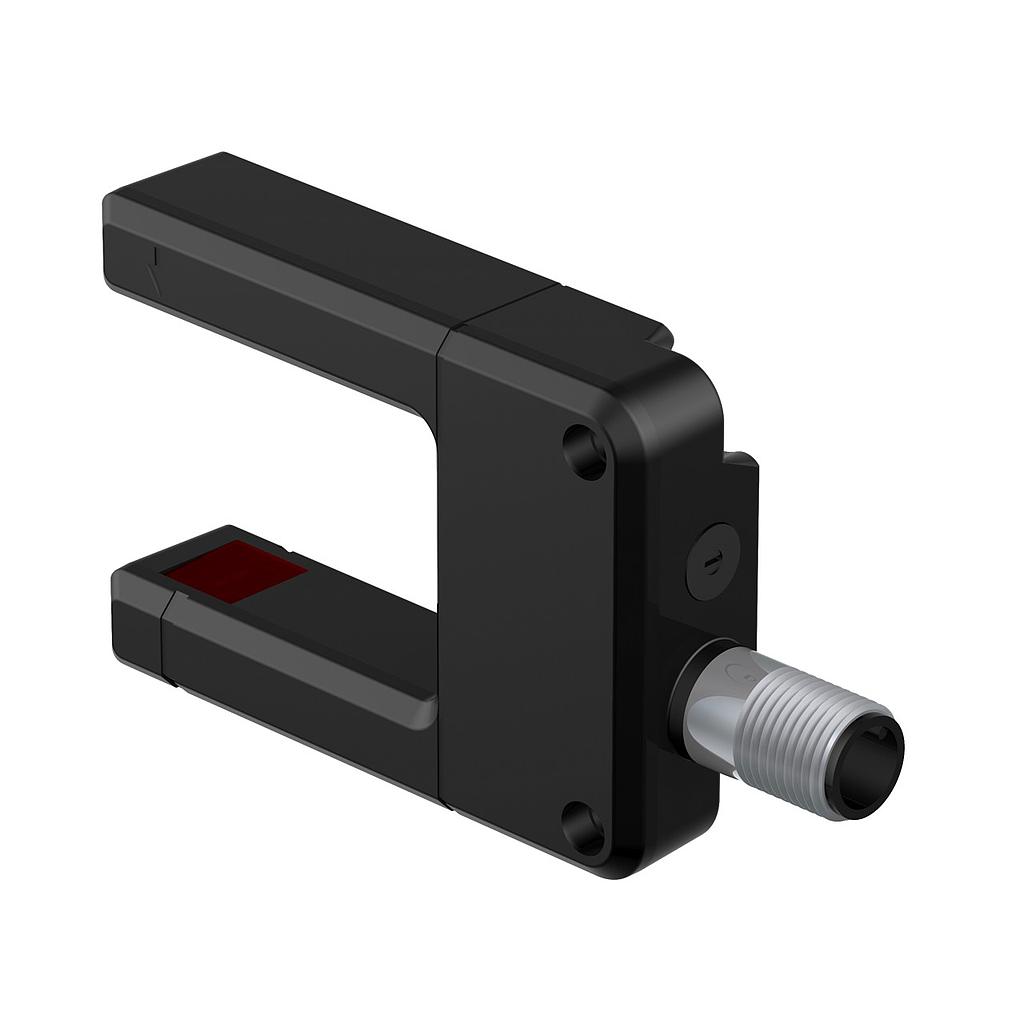

VISIBLE RED 300us QD DO 4-PIN (SL30VB6VYQ-58995)

https://www.branom.com/web/image/product.template/32286/image_1920?unique=c26756c
(0 review)

Features:

  • SL30VB6VYQ-58995 VISIBLE RED 300us QD DO 4-PIN
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Housing Style: Slot
  • Max Sensing Distance: 30 mm
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: Bipolar (NPN & PNP)
  • Number of Pins: 4
  • Output Response Time: 0.3 ms
  • Operation: Dark Operate
  • Adjustments: Potentiometer
  • Feature: Remote Teach: No
  • Min Object Detection: 2 mm
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
  • Max Sensing Range: 30 mm
  • Slot Depth/Array Length (mm): 45 mm
  • Slot Overall Depth (mm): 52 mm
