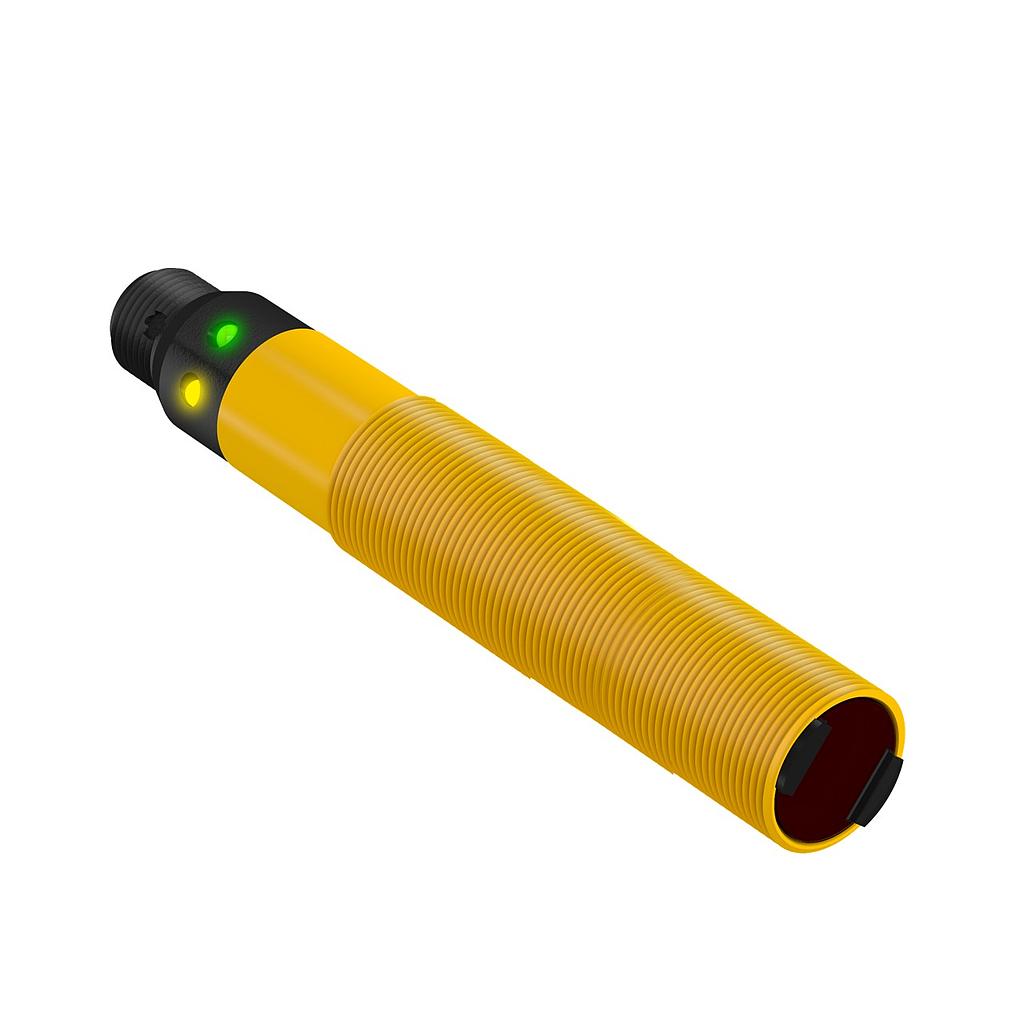

EZ-BEAM S18 Series Threaded Barrel Fixed-Field (S18RW3FF25Q)

https://www.branom.com/web/image/product.template/32214/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-BEAM S18 Series Threaded Barrel Fixed-Field
  • Range: 0-25 mm Cutoff
  • Input: 20-250 V ac
  • Output: Dark Operate
  • Micro 5-pin Integral QD
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 20-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 4000
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 25 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Feature: Chemical Resistant: No
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 16 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED

$ 182.00 182.0 USD $ 182.00

$ 182.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • EZ-BEAM S18 Series Threaded Barrel Fixed-Field
    • Range: 0-25 mm Cutoff
    • Input: 20-250 V ac
    • Output: Dark Operate
    • Micro 5-pin Integral QD
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 20-250 VAC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67/69
    • Repeatability (µs): 4000
    • Sensing Beam: Infrared LED
    • Housing Style: Barrel
    • Max Sensing Distance: 25 mm
    • Sensing Mode (Detailed): Background Suppression (Fixed)
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Washdown Rated: Yes
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: 1/2 in. (Micro)
    • Feature: Chemical Resistant: No
    • Feature: Ecolab Certified: Yes
    • Feature: Water Detection: No
    • Number of Pins: 5
    • Output Response Time: 16 ms
    • Operation: Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: Yes
    • Input/Output: Solid-State AC Switch
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6P
    • Indicator Type: LED
