T18AW3FF25Q1 - EZ-BEAM Self-Contained Barrel-Mount Sensor

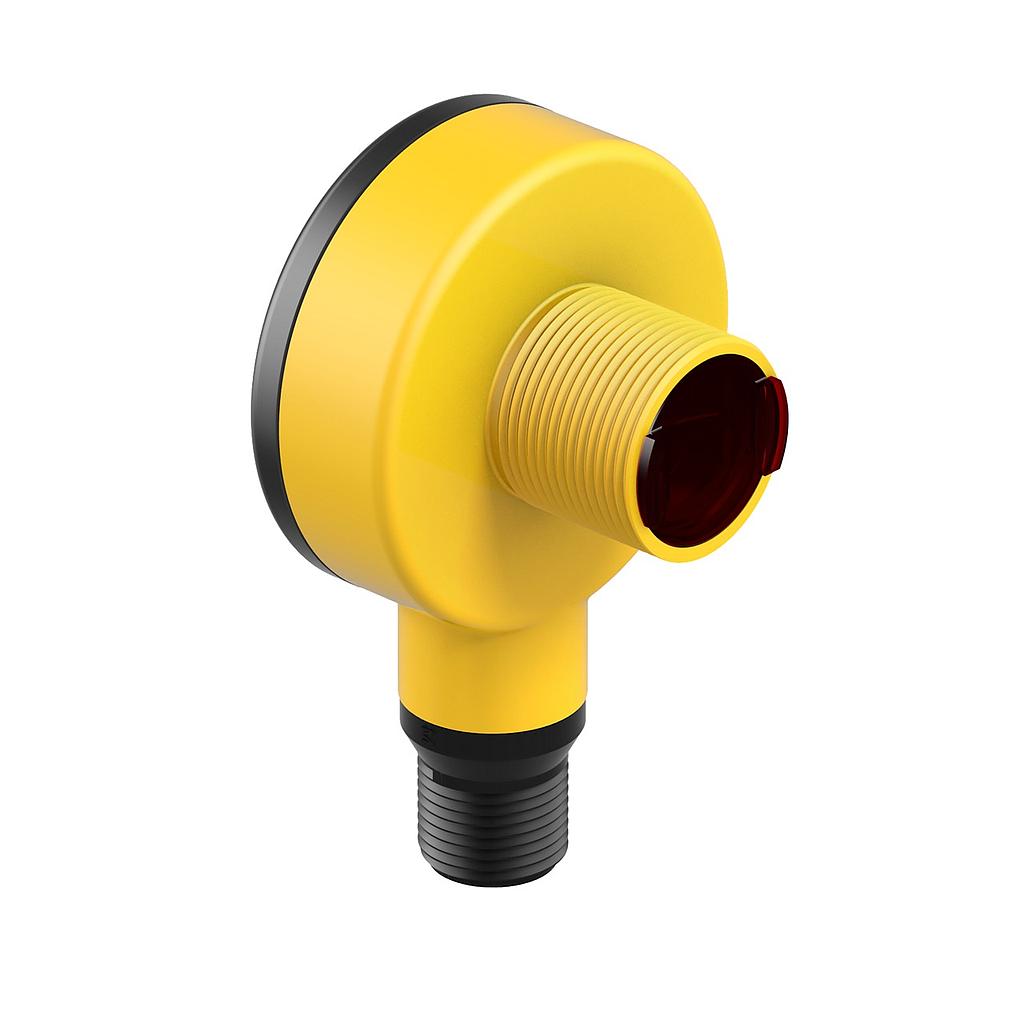

Representative photo. Please check item description for details.

T18AW3FF25Q1 - EZ-BEAM Self-Contained Barrel-Mount Sensor

https://www.branom.com/web/image/product.template/28977/image_1920?unique=c26756c
(0 review)

Features:

    EZ-BEAM T18 Series: Fixed Field; Range: 25 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; Micro 4-pin Integral QD
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 20-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 4000
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 25 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Feature: Chemical Resistant: Yes
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 16 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Proximity
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED

$ 184.00 184.0 USD $ 184.00

$ 184.00

Not Available For Sale
