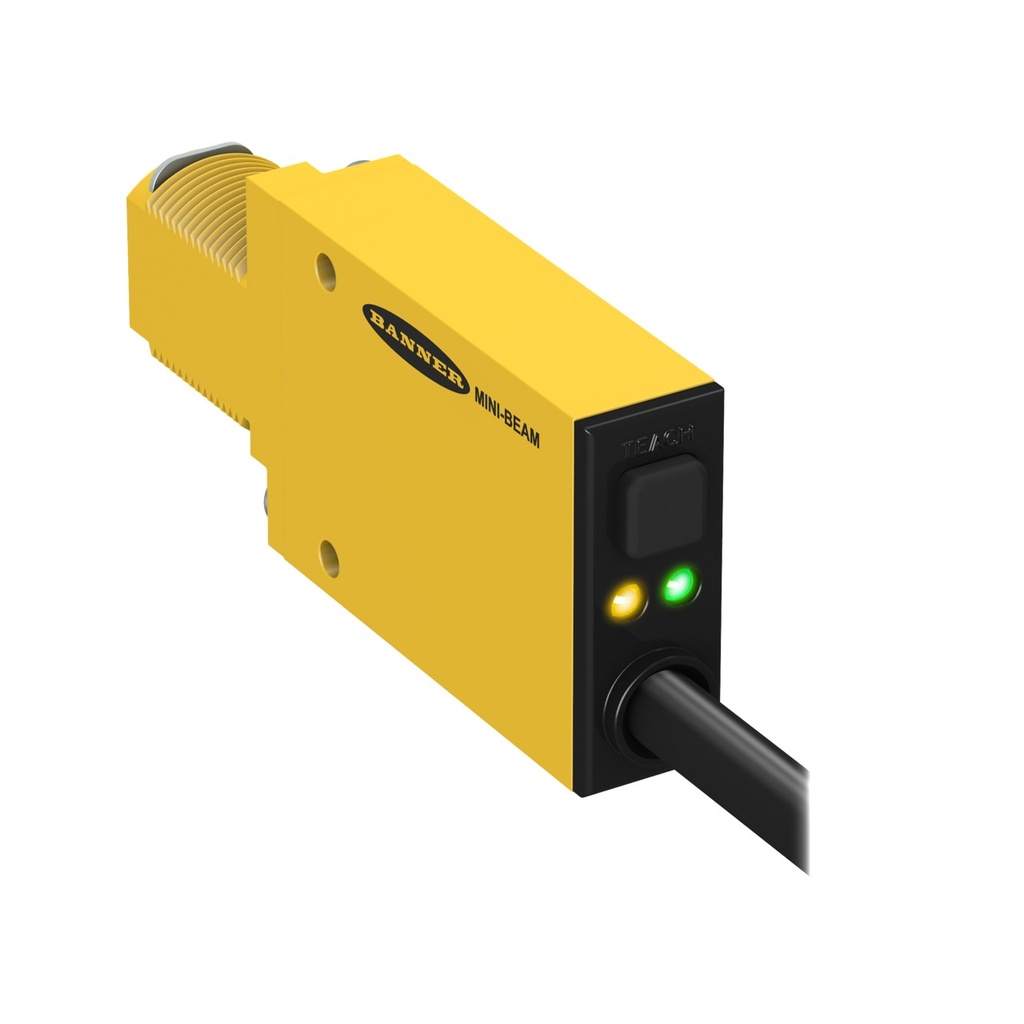

Representative photo. Please check item description for details.

6 INCH MINIBEAM EXPERT IR GLASS FIBER PIGTAIL QD (SME312FQDP)

https://www.branom.com/web/image/product.template/28957/image_1920?unique=c26756c
(0 review)

Features:

  • SME312FQDP 6 INCH MINIBEAM EXPERT IR GLASS FIBER PIGTAIL QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Housing Style: Rectangular w/M18 Mount
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic (TPO)
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Min Response Time: 0.5 ms
  • Output Type (Specific): Single Discrete
  • Color LED - Amplifiers: Infrared
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 150 mm
  • Indicator Type: LED

$ 190.00 190.0 USD $ 190.00

$ 190.00

Not Available For Sale
