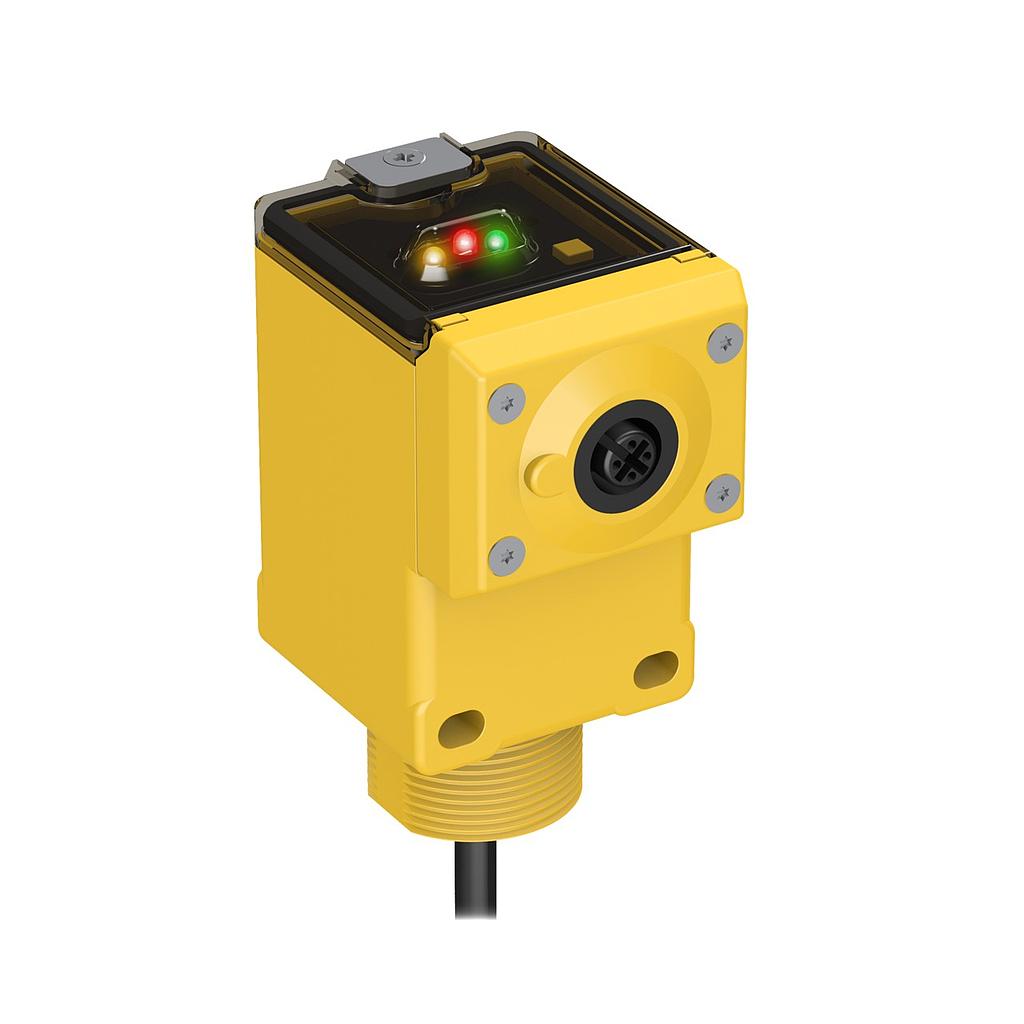

Representative photo. Please check item description for details.

Q45UR Analog Series:Controller (Q45UR3LIU64C W/30)

https://www.branom.com/web/image/product.template/28919/image_1920?unique=c26756c
(0 review)

Features:

  • Q45UR Analog Series:Controller
  • Range: 50
  • 250 mm
  • Input: 15-24 V dc
  • Output: Selectable 0-10V dc or 4-20 mA Sourcing
  • 9 m (30 ft) Cable
  • Analog Current Output Rating: 1 to 500 Ω impedance
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 100 mA
  • Power Supply: 15-24 VDC
  • Temperature Effect (mm/°C): 0.03% to 0.05% of sensing distance/°C
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular
  • Max Sensing Distance: 250 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Controller
  • Housing Material_: Thermoplastic Polyester
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 0 to 10 VDC or 4 to 20 mA
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 85%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Teach Button; DIP Switches
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Min Response Time: 10 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Min Sensing Distance: 50 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 1 mm
  • Max Measurement Range: 100-500 mm
  • Output Protection: Protected against continuous overload and short circuit
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Analog Voltage Output Rating: 10mA Max
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 15 min
  • Ultrasonic Frequency: 400 kHz
  • Analog Linearity: 1.0% FS

$ 742.00 742.0 USD $ 742.00

$ 742.00

Not Available For Sale
