AVENTICS CD01-PA Series Std Valve System (ISO 15407-1), 26 mm, External Pilot, Manual Override w/o Detent

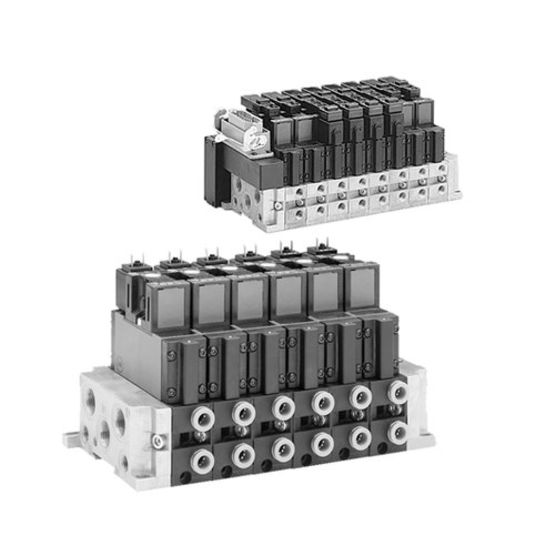

Representative photo. Please check item description for details.

AVENTICS CD01-PA Series Std Valve System (ISO 15407-1), 26 mm, External Pilot, Manual Override w/o Detent

https://www.branom.com/web/image/product.template/207938/image_1920?unique=c26756c
(0 review)

The AVENTICS Series CD01-PA is the flexible valve system according to ISO 15407-1. The Series offers pneumatic or electrical control, vacuum or pressure of up to 16 bar, dual-pressure application, pressure-zones, ATEX certification, and various accessories allow for a wide range of modularity.

Features

  • Nominal flow Qn: 1010 l/min
  • Switching principle: 5/2
  • Compressed air connection output: base plate DIN ISO 15407-1
  • Working pressure min.: 0 bar
  • Working pressure max: 16 bar
  • DC operating voltage: 24 V
  • Voltage tolerance DC: -10% / +10%
  • Manual override: without detent
  • Electrical connection type: Plug
  • Electrical connection size: EN 175301-803, form C
  • Actuating control: Single Solenoid
  • Sealing principle: Soft Seal
  • Pilot: External
  • Certificates: Free of substances that impair surface wetting in the coating process
  • Standards: ISO 15407-1
  • Pilot valve width: 26 mm
  • Valve type: Spool valve, positive overlapping
  • Connection type: Plate connection
  • Return: with spring/air spring return
  • Compressed air connection input: base plate DIN ISO 15407-1
  • Compressed air connection, exhaust: base plate DIN ISO 15407-1
  • Compressed air connection pilot input: base plate DIN ISO 15407-1
  • Compressed air connection pilot exhaust: base plate DIN ISO 15407-1
  • Power consumption DC: 1.6 W
  • Frame size: 26 mm:

$ 154.42 154.42 USD $ 154.42

$ 154.42

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
