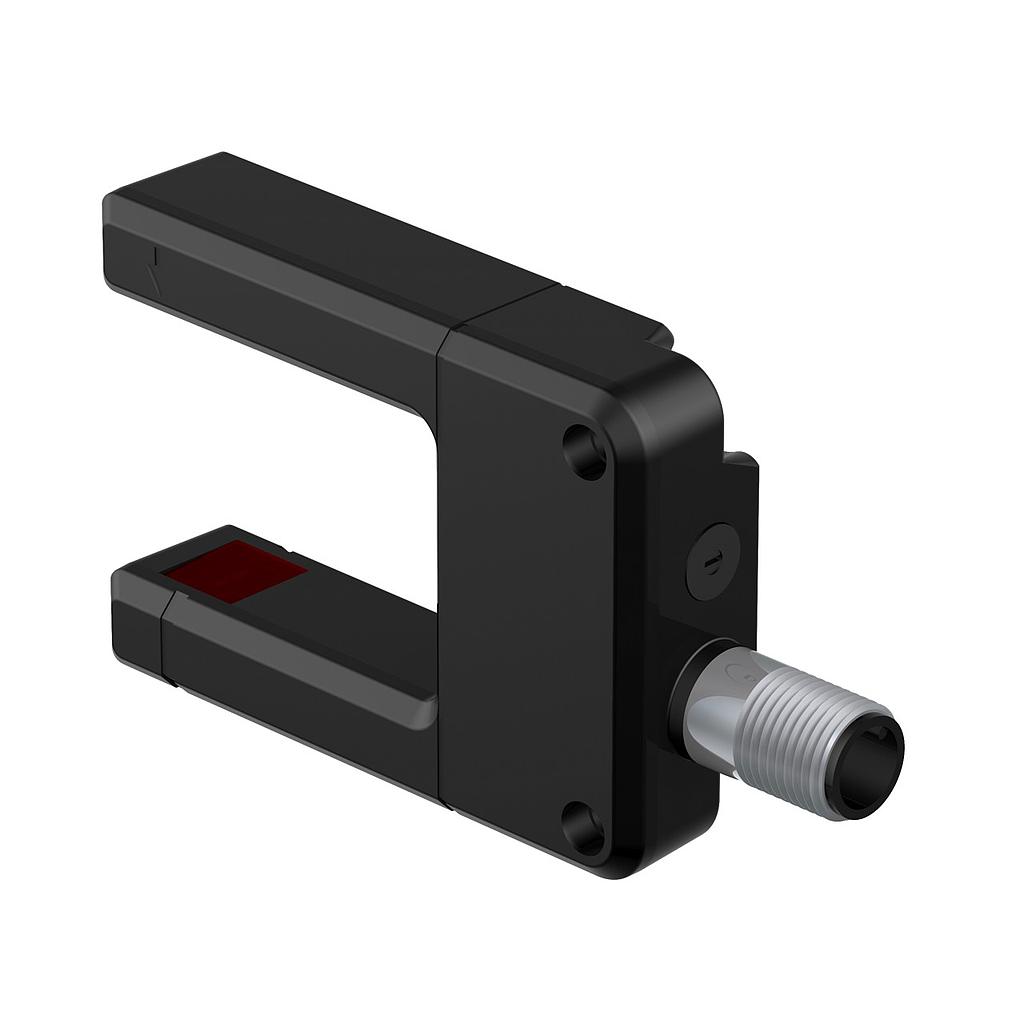

SL Series: Slot Sensor (SL30VB6VYQ)

https://www.branom.com/shop/56568-sl-series-slot-sensor-sl30vb6vyq-28787 https://www.branom.com/web/image/product.template/28787/image_1920?unique=c26756c

(0 review)

Features:

• SL Series: Slot Sensor
• Slot width: 30 mm
• Input: 10-30V dc
• Output: Bipolar: 1 NPN
• 1 PNP
• Quick-Disconnect Connector
• Max Operating Temperature: 70 °C
• Lens Material: Acrylic
• Ingress Protection: IP67
• Repeatability (µs): 75
• Housing Style: Slot
• Sensing Mode (Detailed): Emitter/Receiver Pair
• Feature: Quick Disconnect: Yes
• Quick Disconnect Type: M12 (Euro)
• Number of Pins: 5
• Output Response Time: 0.3 ms
• Operation: Light/Dark Operate
• Adjustments: Potentiometer
• Feature: Remote Teach: No
• Min Object Detection: 2 mm
• Connection: Integral QD
• NEMA / UL: NEMA 6
• Indicator Type: LED
• Max Sensing Range: 30 mm
• Slot Depth/Array Length (mm): 45
• Slot Overall Depth (mm): #REF!
