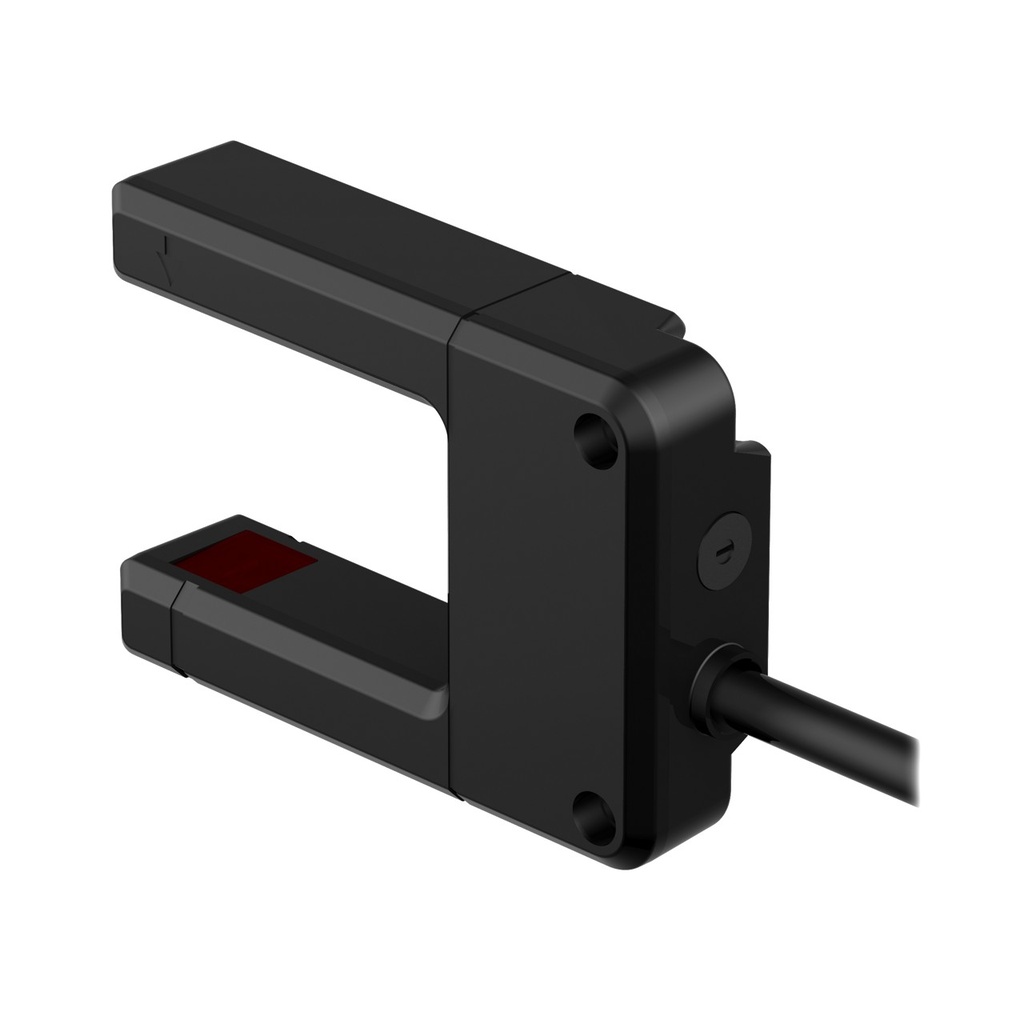

Representative photo. Please check item description for details.

SL Series: Slot Sensor (SL30VB6VY)

https://www.branom.com/web/image/product.template/28785/image_1920?unique=c26756c
(0 review)

Features:

  • SL Series: Slot Sensor
  • Slot width: 30 mm
  • Input: 10-30V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) cable
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Housing Style: Slot
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Feature: Quick Disconnect: No
  • Number of Pins: 5
  • Output Response Time: 0.3 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Remote Teach: No
  • Min Object Detection: 2 mm
  • Connection: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
  • Max Sensing Range: 30 mm
  • Slot Depth/Array Length (mm): 45
  • Slot Overall Depth (mm): #REF!
