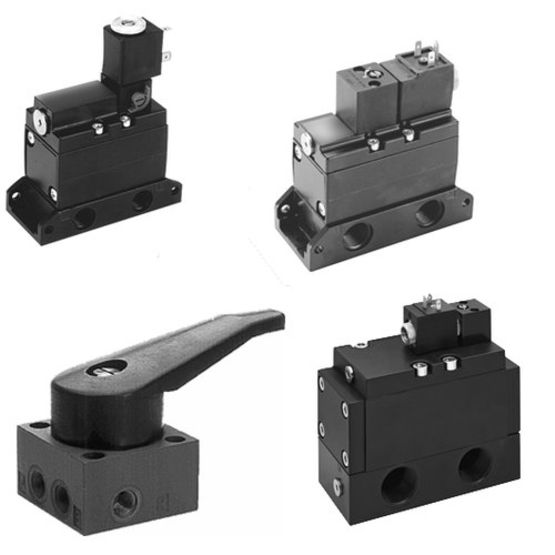

Representative photo. Please check item description for details.
AVENTICS 565 Series Directional Poppet Valve, G 1/2 BSP
The AVENTICS Series 563/565/567 have an aluminium housing, and are suited for assembly on single or manifold subbases and offer flow rate performances of up to 13620 l/min with a working pressure of up to 30 bar.
Features
- Activation: Pneumatically
- Nominal flow Qn: 4240 l/min
- Compressed air connection output: G 1/2
- Connection type: Plate connection
- Working pressure min.: -1 bar
- Working pressure max: 10 bar
- Valve type: Poppet valve
- Control pressure min.: 3.5 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 70 °C
- Min. medium temperature: -20 °C
- Max. medium temperature: 70 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Weight: 0.55 kg
- Housing material: Aluminum
- Seal material: Fluorocarbon caoutchouc, Acrylonitrile butadiene styrene:
