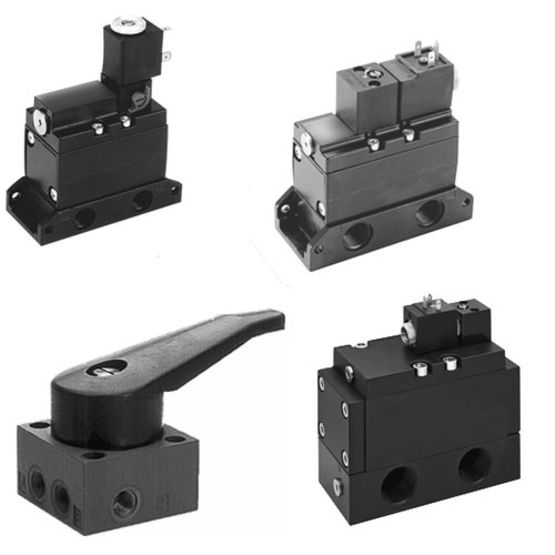

Representative photo. Please check item description for details.
AVENTICS 56x Series Directional Poppet Valve, G 1/4 BSP, 24 VAC, 3/2 NO / NC, Manual Override w/Detent
The AVENTICS Series 563/565/567 have an aluminium housing, and are suited for assembly on single or manifold subbases and offer flow rate performances of up to 13620 l/min with a working pressure of up to 30 bar.
Features
- Activation: Electrically
- Nominal flow Qn: 1350 l/min
- Switching principle: 3/2
- Version: NO/NC
- Working pressure min.: 3.5 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: with detent
- Electrical connection type: Plug
- Electrical connection size: Form B, industry
- Pilot: Internal, External
- Valve type: Poppet valve
- Connection type: Plate connection
- Control pressure min.: 3.5 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: -20 °C
- Max. medium temperature: 50 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Compressed air connection input: G 1/4:
The AVENTICS Series 563/565/567 have an aluminium housing, and are suited for assembly on single or manifold subbases and offer flow rate performances of up to 13620 l/min with a working pressure of up to 30 bar.
Features
- Activation: Electrically
- Nominal flow Qn: 1350 l/min
- Switching principle: 3/2
- Version: NO/NC
- Working pressure min.: 3.5 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: with detent
- Electrical connection type: Plug
- Electrical connection size: Form B, industry
- Pilot: Internal, External
- Valve type: Poppet valve
- Connection type: Plate connection
- Control pressure min.: 3.5 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: -20 °C
- Max. medium temperature: 50 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Compressed air connection input: G 1/4:
