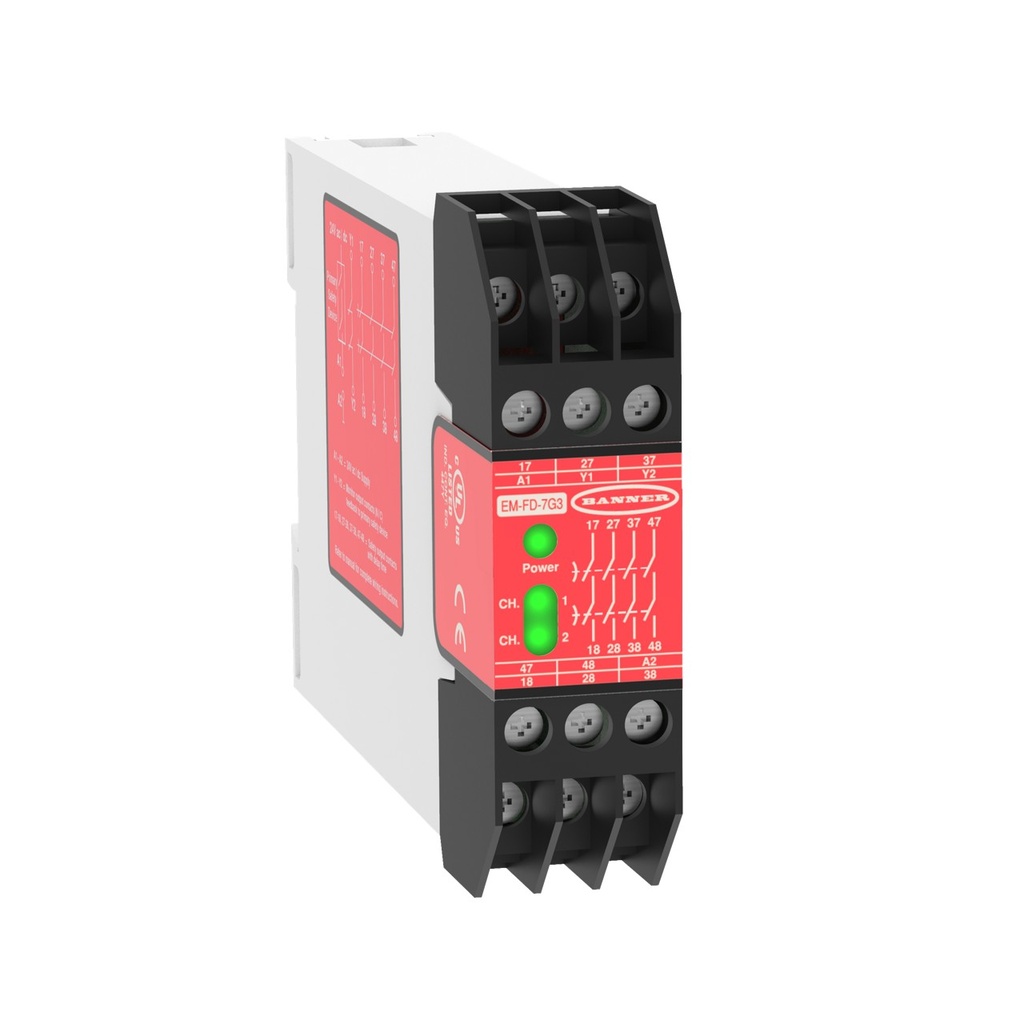

Safety Extension Module (EM-FD-7G3)

https://www.branom.com/web/image/product.template/28673/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Extension Module
  • Inputs: 1 = output of primary device
  • 24 V ac/dc
  • Safety Outputs: 4 NO, 6 Amp
  • Aux Outputs: None
  • 1.0 sec time delay
  • Terminal Block: Fixed
  • Width 22.5mm
  • Max Operating Temperature: 50 °C
  • Power Consumption: 0.1 A
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Safe Output Rating: Relay - 6 A
  • Supply Voltage: 24 VAC/dc +/- 10%
  • Safety Module Type: Relay Extension Module
  • Independently Controlled Safe Outputs: 1
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • Input Configuration: 1 NC
  • Terminal Type: Screw
  • Number of Safe Inputs: 1
  • Output Configuration: 4 NO
  • Safety Mat: No
  • Recovery Time: 30 ms
  • Response Time: 35 ms
  • Number of Stored Colors: 1
  • Safety Input - Single Channel: 40-100 mA @ 13-27 VAC/dc
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 100,000 @ 1500 VA
  • Feature: E-Stops/Rope Pulls: No
  • Feature: Expandable: No
  • Feature: Removable Terminals: No
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: No
  • Feature: Muting: No
  • Feature: Safety Mat: No
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 10 mil

$ 317.00 317.0 USD $ 317.00

$ 317.00

Not Available For Sale
