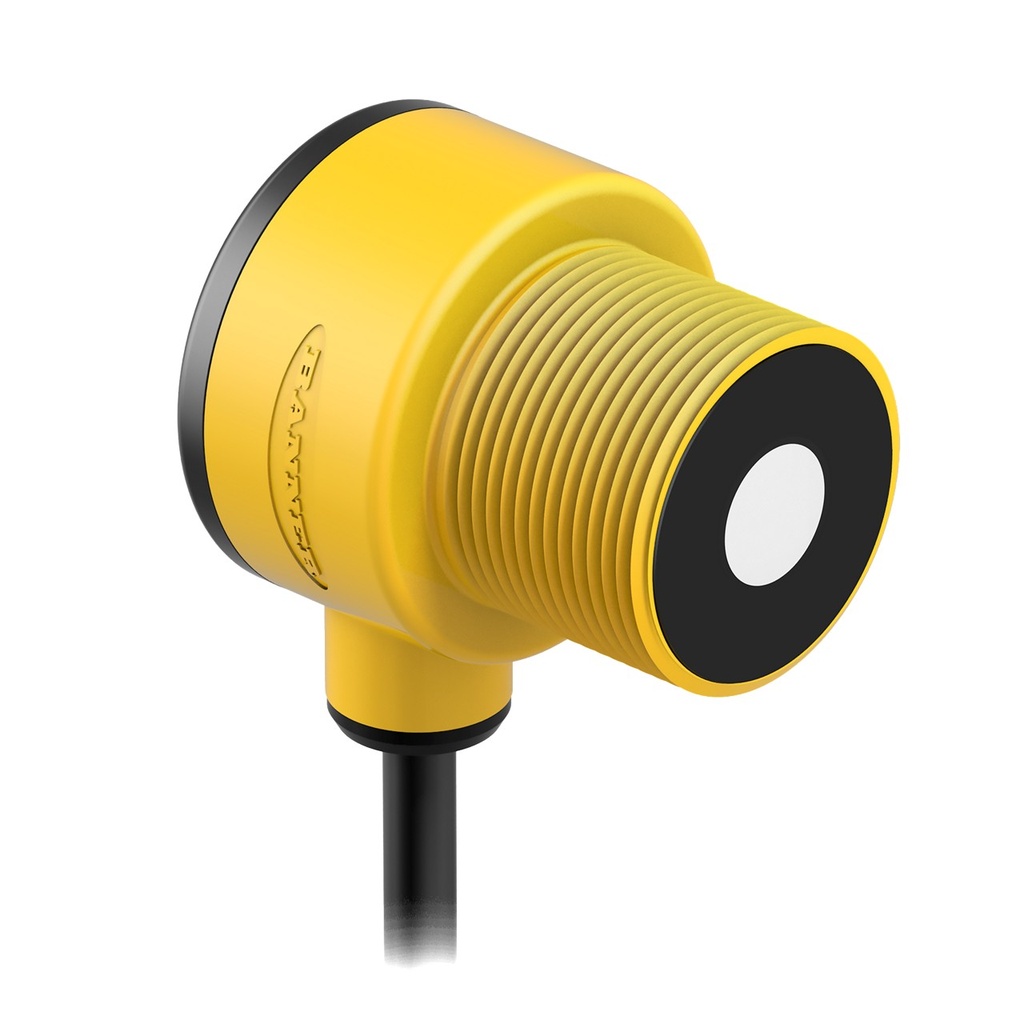

Representative photo. Please check item description for details.

Dual-Discrete T30U Series: Proximity Mode (T30UDNA W/30)

https://www.branom.com/web/image/product.template/28666/image_1920?unique=c26756c
(0 review)

Features:

  • Dual-Discrete T30U Series: Proximity Mode
  • Range: 150 mm to 1 m
  • Input: 12-24V dc
  • Outputs: Two Discrete NPN
  • 9 m (30 ft) Cable
  • Max Off-State Leakage Current (µA): 10 µA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 90 mA
  • Power Supply: 12-24 VDC
  • Temperature Effect (mm/°C): 0.2% of sensing distance/°C
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Barrel
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: No
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Barrel Diameter: 30
  • Min Response Time: 48 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 150 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 10 mm
  • Remote Teach and Laser Control Input Impedence: 55 kΩ
  • Discrete (Switched) Outputs: 2 NPN
  • Max Measurement Range: 500-1000 mm
  • Output Protection: Protected against false pulse on power-up and continuous overload or short-circuit of outputs
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <1.0 V @ 10 mA / <1.5 V @ 100 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Barrel Thread: M30
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Warm-Up Time: 15 min
  • Discrete Output Hysteresis: 2.5 mm
  • Ultrasonic Frequency: 228 kHz
