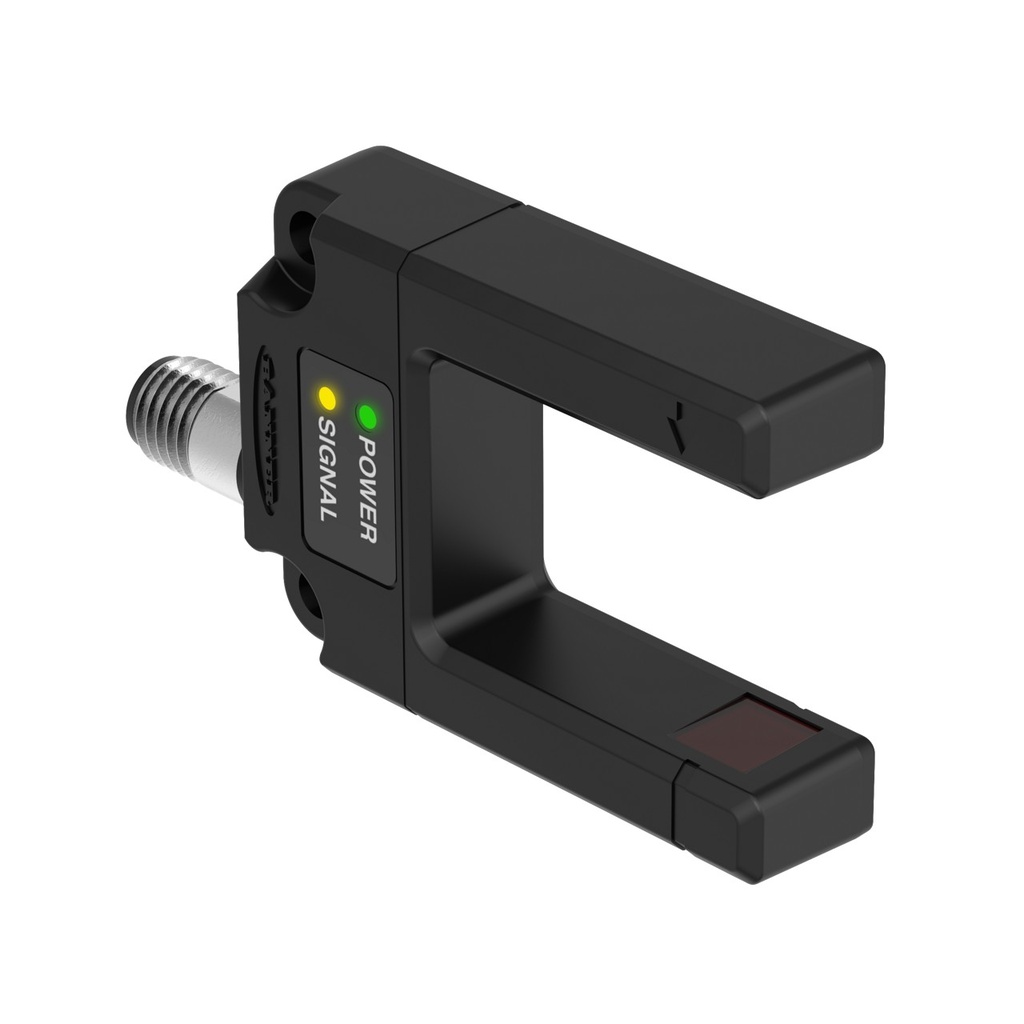

Representative photo. Please check item description for details.

SLE30 EXPERT Series: Teach Mode Slot Sensor (SLE30B6VQ)

https://www.branom.com/web/image/product.template/28652/image_1920?unique=c26756c
(0 review)

Features:

  • SLE30 EXPERT Series: Teach Mode Slot Sensor
  • Slot width: 30 mm
  • Input: 10-30V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • Quick-Disconnect Connector
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Housing Style: Slot
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12 (Euro)
  • Number of Pins: 5
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Remote Teach: Yes
  • Min Object Detection: 1.8 mm
  • Connection: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
  • Max Sensing Range: 30 mm
  • Slot Depth/Array Length (mm): 45
  • Slot Overall Depth (mm): #REF!
