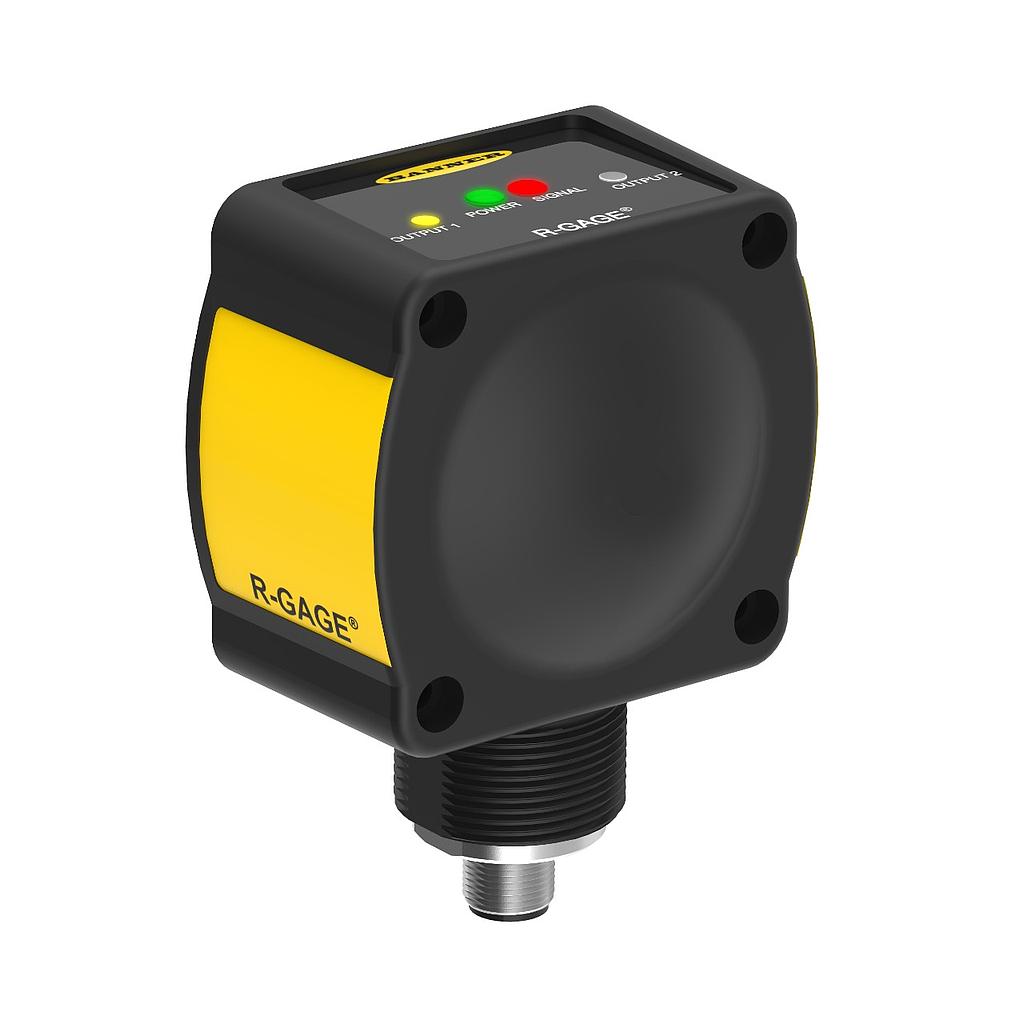

R-Gage Series Radar Sensor (QT50R-EU-AFSQ)

https://www.branom.com/web/image/product.template/28533/image_1920?unique=c26756c
(0 review)

Features:

  • R-Gage Series Radar Sensor
  • Adjustable Field
  • Outputs: Bipolar: 1 NPN
  • 1 PNP
  • Supply Voltage:12-30 V dc
  • Range: 2.0
  • 3.5 m
  • Euro 5-pin Integral Connector
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power/Current Consumption (exclusive of load): < 100 mA
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 2000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 3500 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Dip Switch
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 30 ms
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 2000 mm
  • Discrete (Switched) Outputs: Bipolar (NPN & PNP)
  • Max Measurement Range: 5 m
  • Output Protection: Protected against short circuit
  • SSI: No
  • Profibus: No
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Operating Frequency: 24 GHz
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Radar Beam Pattern (H x V °): 90 x 76
  • Indicator Type: LED

$ 993.00 993.0 USD $ 993.00

$ 993.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
