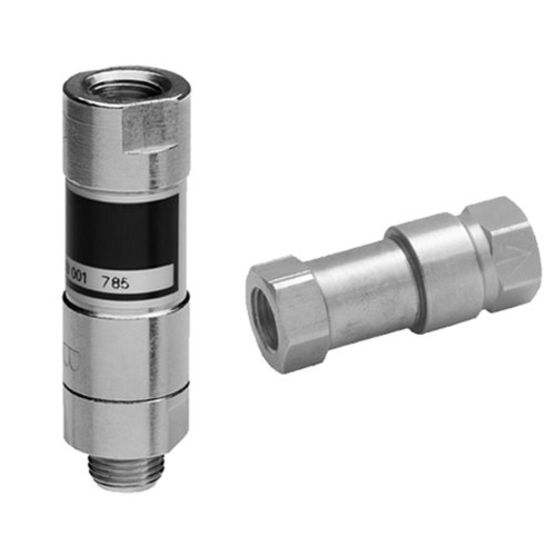

AVENTICS NR01 Series Shut-Off Valve, G 1/4 Internal Thread, Brass, NBR Seal
AVENTICS Series NR01, Thanks to an array of connection options, the NR non-return valves can be screwed in separately and are also suitable for direct installation in piping.
Features
- Compressed air connection 1: G 1/4
- Compressed air connection type 1: Internal thread
- Mounting: installing in piping
- Compressed air connection type 2: Internal thread
- Type: Poppet valve
- Compressed air connection 2: G 1/4
- Nominal flow Qn 1 to 2: 1050 l/min
- Working pressure min.: 0.5 bar
- Working pressure max: 15 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 60 °C
- Min. medium temperature: -10 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Weight: 0.168 kg
- Housing material: Brass
- Seal material: Acrylonitrile butadiene rubber:
