531S / 541S Butterfly Valve Series Lever Operated Lug-Style Butterfly Valve w/ Viton Seat and SS Disc

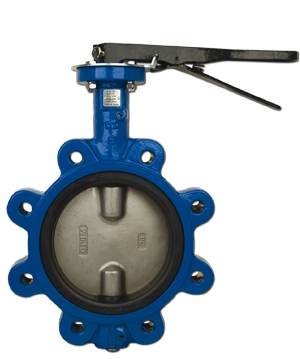

Representative photo. Please check item description for details.

531S / 541S Butterfly Valve Series Lever Operated Lug-Style Butterfly Valve w/ Viton Seat and SS Disc

https://www.branom.com/web/image/product.template/534846/image_1920?unique=c26756c
(0 review)

N501N Butterfly Valve Series manually operated Lug butterfly valves.

Features

  • Pressure rating: 250 psi water (40°F to 80°F).
  • Epoxy coated ductile iron lug body.
  • ISO 5211 direct mounting pad/square stem.
  • Food grade EPDM resilient seat -30°F to 250°F.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • NSF certified for drinking water service (EPDM seats only).
  • Dead end service to 100 psi.

Model Details

  • N501N: size 2" to 12".
  • N501S: size 1 1/2" to 12".
  • 531S: VITON® SEATS - size 2" to 12".
  • 541N-541S: BUNA-N SEATS - size 2" to 12".

$ 150.87 150.87 USD $ 150.87

$ 94.16

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

N501N Butterfly Valve Series manually operated Lug butterfly valves.

Features

  • Pressure rating: 250 psi water (40°F to 80°F).
  • Epoxy coated ductile iron lug body.
  • ISO 5211 direct mounting pad/square stem.
  • Food grade EPDM resilient seat -30°F to 250°F.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • NSF certified for drinking water service (EPDM seats only).
  • Dead end service to 100 psi.

Model Details

  • N501N: size 2" to 12".
  • N501S: size 1 1/2" to 12".
  • 531S: VITON® SEATS - size 2" to 12".
  • 541N-541S: BUNA-N SEATS - size 2" to 12".

Specifications

Model [531S] Viton Seat and SS Disc, [541S] Buna-N Seat and SS Disc
Valve Size 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 2"‎ , 2-1/2"‎ , 3"‎ , 4"‎ , 5"‎ , 6"‎ , 8"‎ , 10"‎ , 12"‎
