Wika TG.53 Series Bimetal Thermometer, 50 to 500 °F
Applications
- General process instrumentation in the chemical and petrochemical industries, oil and gas industries, power generation and water/wastewater industries
- Temperature measurement in harsh and aggressive environments
- Suitable for applications with high vibrations
Special Features
- Robust, hermetically sealed case
- Accuracy: ±1 % of full scale value ASME B40.200 (grade A)
- External reset for reference temperature adjustment
- Dished dial (anti-parallax) for ease of reading
- Adjustable stem and dial version enables optimal process connection
Features
- Bimetal thermometer, Industrial grade according to ASME B40.200
- Model: TG51.3Z
- Specifications according to data sheet: TG51
- Accuracy Class: +/- 1% of Full Scale (ASME B40.3)
- Nominal size: 3"
- Connector position: back mount
- Design of Connection: standard, male thread
- Process Connection: 1/2" NPT

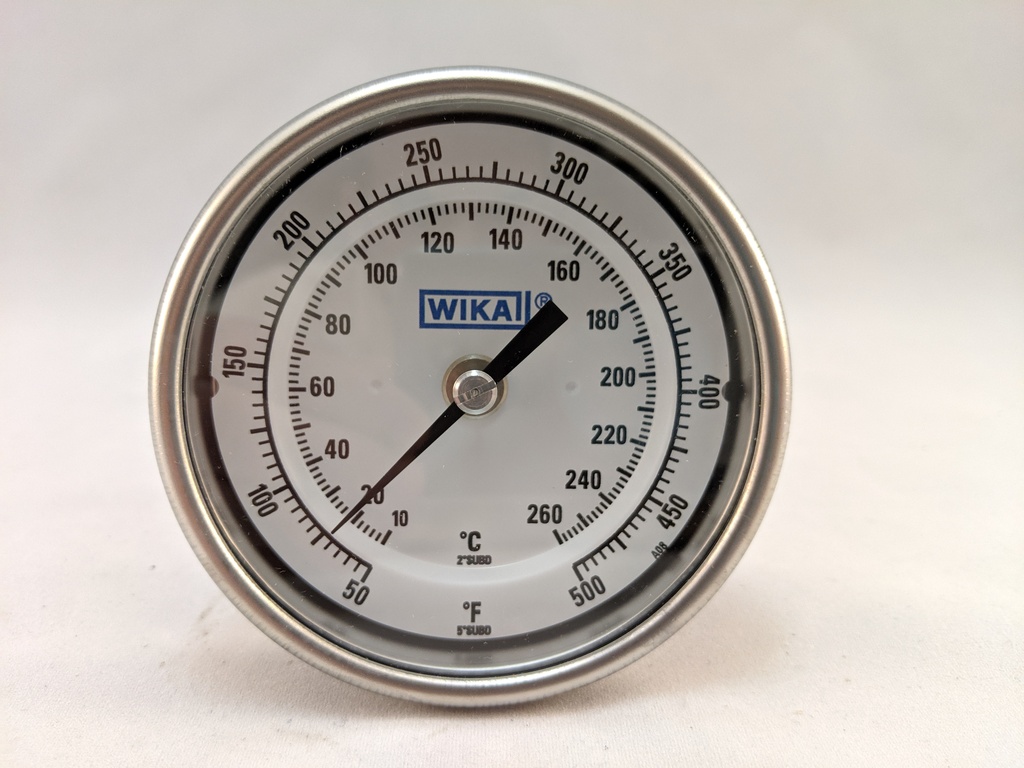

- Scale Range: 50 °F ... 500 °F
- 2nd Scale: 2nd scale °C

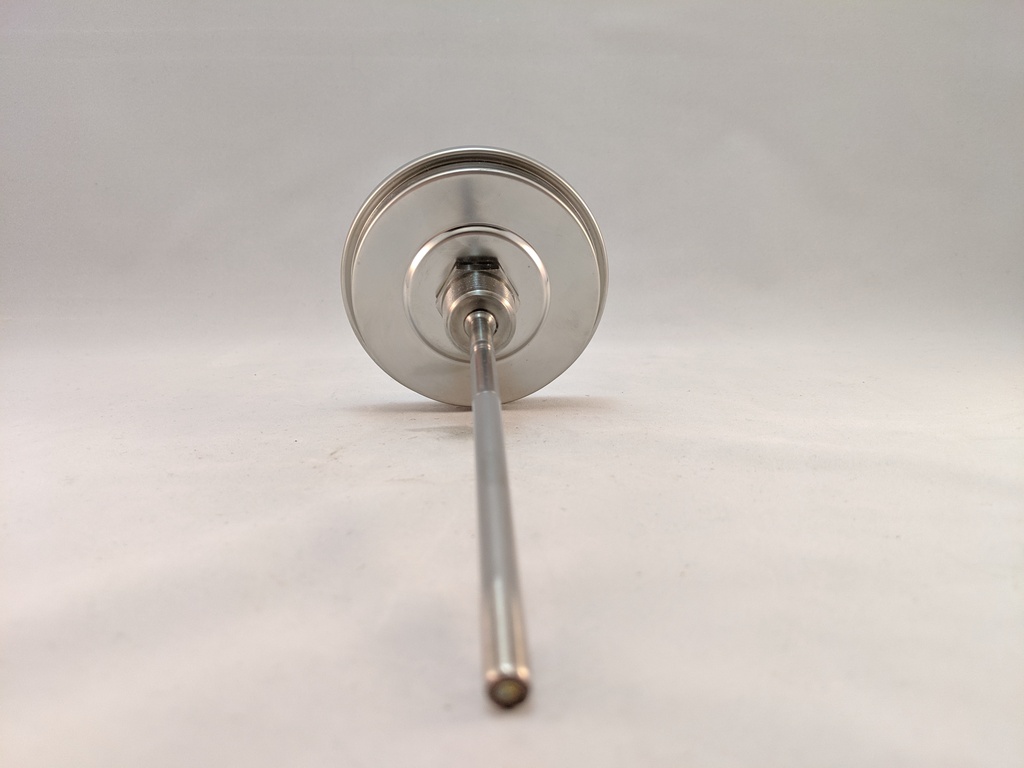

- Stem Diameter: 1/4"
- Insertion length L1: 6"
- Window: Flat Instrument Glass
- Ingress Protection: IP 66 / NEMA 4X
- color for 2.scale (inside): red
- Manufacturer logo: *WIKA®*
- serial number on dial: Serial number *...*
Applications
- General process instrumentation in the chemical and petrochemical industries, oil and gas industries, power generation and water/wastewater industries
- Temperature measurement in harsh and aggressive environments
- Suitable for applications with high vibrations
Special Features
- Robust, hermetically sealed case
- Accuracy: ±1 % of full scale value ASME B40.200 (grade A)
- External reset for reference temperature adjustment
- Dished dial (anti-parallax) for ease of reading
- Adjustable stem and dial version enables optimal process connection
Features
- Bimetal thermometer, Industrial grade according to ASME B40.200
- Model: TG51.3Z
- Specifications according to data sheet: TG51
- Accuracy Class: +/- 1% of Full Scale (ASME B40.3)
- Nominal size: 3"
- Connector position: back mount
- Design of Connection: standard, male thread
- Process Connection: 1/2" NPT
- Scale Range: 50 °F ... 500 °F
- 2nd Scale: 2nd scale °C
- Stem Diameter: 1/4"
- Insertion length L1: 6"
- Window: Flat Instrument Glass
- Ingress Protection: IP 66 / NEMA 4X
- color for 2.scale (inside): red
- Manufacturer logo: *WIKA®*
- serial number on dial: Serial number *...*
Specifications
| Measurement Maximum | 500.0 |
| Process Connection Type | NPT-Male |
| Dial Size | 3" |
| Process Connection Location | Back (Center) |
| Measurement Minimum | 50 |
| Ingress Protection | IP66 |
