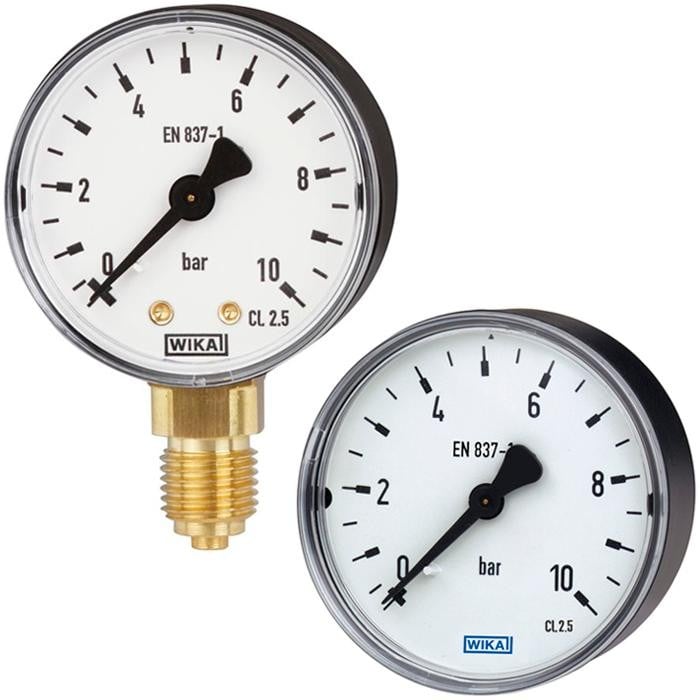

Wika 111.10 Series 2.5" Brass Dry Pressure Gauge, 0 to 1500 psi, G 1/4 B, Lower Mount, w/Pressure Vent
The model 111 pressure gauges are based on the proven Bourdon tube measuring system. The deflection of the Bourdon tube is transmitted to a movement and indicated.
The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to the high variance, the instrument is suitable for use in a wide range of applications within industry.
For mounting in control panels, the pressure gauges can, depending on the process connection, be fitted with a surface mounting flange or with a triangular profile ring and mounting bracket.
The standard version of the model 111 is manufactured, cost-optimised on modern production lines, in volumes of several million instruments per year.
Applications
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pneumatics
- Heating and air-conditioning technology
- Medical engineering
Features
- Type 111.10 ABS or Painted Steel Case Lower Mount
- Specifications according to data sheet: 111.10
- Unit of outer Scale: psi / -inHg
- Measuring range: gauge pressure range
- Nominal Size: 2.5"
- Scale range: 0/1500 psi
- Process Connection: G 1/4 B
- Connector location: lower mount
- Case: Black steel with pressure vent
- Movement: Copper alloy
- Window: Polycarbonate
- Pointer: standard pointer
- +/- 3/2/3% (ASME B40.100 Grade B)
- single packing
- Process connection surface area: brass
- Dial: Plastic, White, with Stop Pin
- US-Standard
- color for 1.scale (outside): black
- customer logo beginning with: without
- dial background: White
- Manufacturer logo: *WIKA®*
- stop pin on dial: at zero
The model 111 pressure gauges are based on the proven Bourdon tube measuring system. The deflection of the Bourdon tube is transmitted to a movement and indicated.
The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to the high variance, the instrument is suitable for use in a wide range of applications within industry.
For mounting in control panels, the pressure gauges can, depending on the process connection, be fitted with a surface mounting flange or with a triangular profile ring and mounting bracket.
The standard version of the model 111 is manufactured, cost-optimised on modern production lines, in volumes of several million instruments per year.
Applications
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pneumatics
- Heating and air-conditioning technology
- Medical engineering
Features
- Type 111.10 ABS or Painted Steel Case Lower Mount
- Specifications according to data sheet: 111.10
- Unit of outer Scale: psi / -inHg
- Measuring range: gauge pressure range
- Nominal Size: 2.5"
- Scale range: 0/1500 psi
- Process Connection: G 1/4 B
- Connector location: lower mount
- Case: Black steel with pressure vent
- Movement: Copper alloy
- Window: Polycarbonate
- Pointer: standard pointer
- +/- 3/2/3% (ASME B40.100 Grade B)
- single packing
- Process connection surface area: brass
- Dial: Plastic, White, with Stop Pin
- US-Standard
- color for 1.scale (outside): black
- customer logo beginning with: without
- dial background: White
- Manufacturer logo: *WIKA®*
- stop pin on dial: at zero
Specifications
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psi |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Case Material | Steel |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | G 1/4 B |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 111.10 |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Type | Dial Indicating Gauge |
