Representative photo. Please check item description for details.

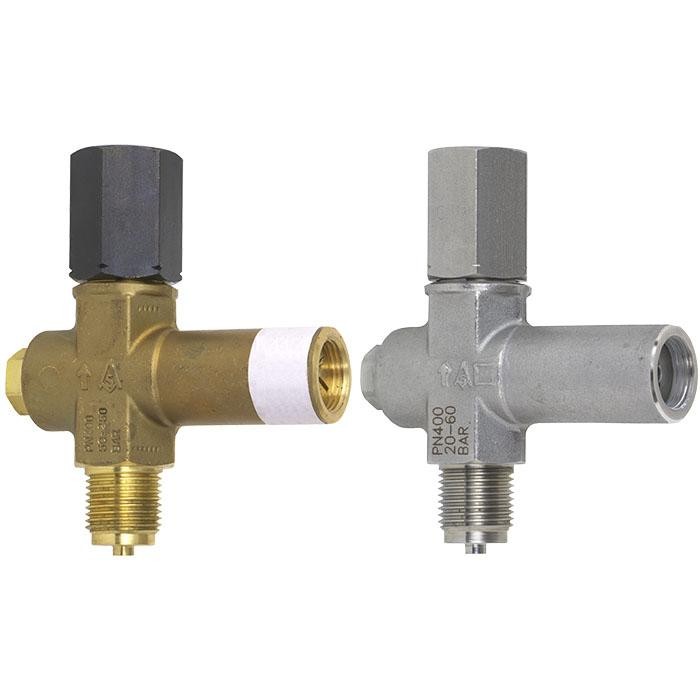

Wika 910.13 Series Adjustable Overpressure Valve, Stainless Steel, 1/2" NPTM to 1/2" NPTF, 50 to 250 bar
Applications
- Protection against overpressures which occur beyond the scale range of the pressure measuring instrument
- Stainless steel version for aggressive media, also in aggressive environments
- Machine building, general plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology
Special Features
- Version with pressure connection thread in form A or form B
- 7 different setting ranges selectable
- Nominal pressures to 600 bar
- Overpressure safety up to 1,000 bar
- Vacuum protected
Features
- Overpressure protector, adjustable
- Specifications according to data sheet: AC 09.04
- Special design features: NACE Sour Gas Service
- Material body: Stainless steel 1.4571
- Material sealing: FPM
- Temperature range of medium: -10...+80°C
- Connection process side + instument side: 1/2 NPT male + 1/2 NPT female
- Overpressure safety: 1000 bar
- Certificates/Approvals: NACE Sour Gas Service and Inspection certificate 3.1 according to EN 10204,body material
- Setting range: 50…250 bar
Applications
- Protection against overpressures which occur beyond the scale range of the pressure measuring instrument
- Stainless steel version for aggressive media, also in aggressive environments
- Machine building, general plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology
Special Features
- Version with pressure connection thread in form A or form B
- 7 different setting ranges selectable
- Nominal pressures to 600 bar
- Overpressure safety up to 1,000 bar
- Vacuum protected
Features
- Overpressure protector, adjustable
- Specifications according to data sheet: AC 09.04
- Special design features: NACE Sour Gas Service
- Material body: Stainless steel 1.4571
- Material sealing: FPM
- Temperature range of medium: -10...+80°C
- Connection process side + instument side: 1/2 NPT male + 1/2 NPT female
- Overpressure safety: 1000 bar
- Certificates/Approvals: NACE Sour Gas Service and Inspection certificate 3.1 according to EN 10204,body material
- Setting range: 50…250 bar
