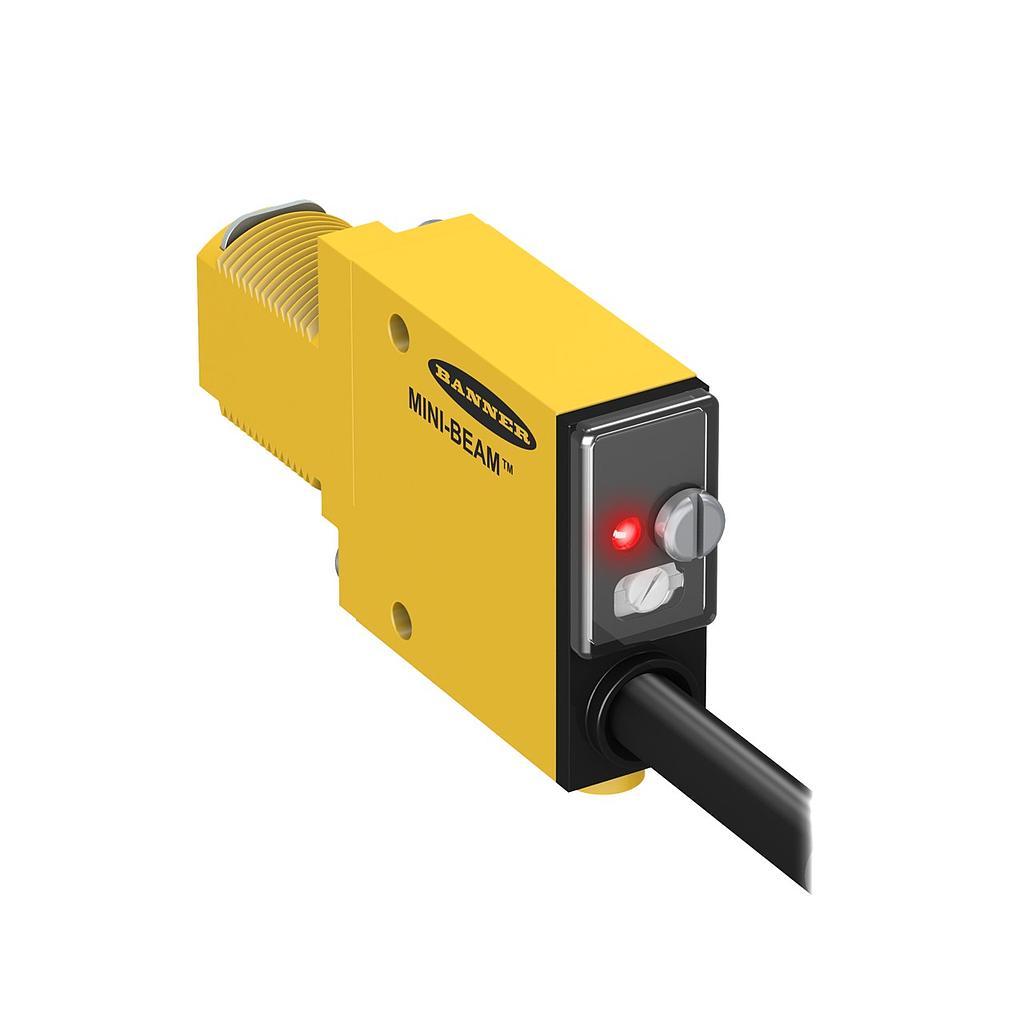

MINI-BEAM: Visible Green 525 nm Glass Fiber Optic (SM312FVG)

https://www.branom.com/web/image/product.template/28171/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Visible Green 525 nm Glass Fiber Optic
  • Range: depends on fiber used
  • Input: 10-30V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Housing Style: Rectangular w/M18 Mount
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Number of Pins: 4
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 1 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Green
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12
  • Cord/Cable Length: 2 m
  • Fiber Termination Type: Glass Fiber Termination
  • Indicator Type: Indicator LED

$ 170.00 170.0 USD $ 170.00

$ 170.00

Not Available For Sale
