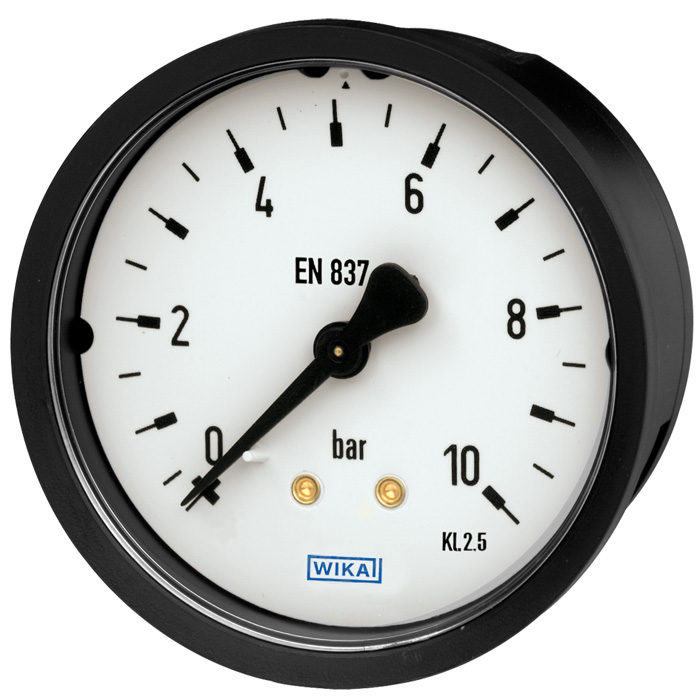

Wika 111.16PM Series Dry Pressure Gauge, 1.5" Dial, 0 to 30 psi (kPa), 1/8 NPT Brass Center Back Mount, Round U-Clamp Bracket, *STEAM* ABOVE POINTER AXIS
The models 111.16 and 111.26 have been specifically designed for panel mounting and therefore feature a back mount process connection.
The model 111 pressure gauges are based on the proven Bourdon tube measuring system. On pressurisation, the deflection of the Bourdon tube, proportional to the incident pressure, is transmitted to the movement via a link and indicated.
For easy installation, the plastic cases of the panel mounting series are already equipped with a mounting flange.
The model 111.16 Bourdon tube pressure gauge can be fitted to the panel by means of a mounting bracket (accessory). The model 111.26 is mounted to the panel by "snap-in mounting" using lateral locating lugs at the case. In addition, metallised front bezels can be supplied for the model 111.26.
The panel mounting series of model 111 is also available in customer-specific versions, e.g. with individual dial layout.
Applications
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Heating and air-conditioning technology
- Small-capacity compressors
- Drink dispensers
- Medical engineering
Features
- Type 111.16 Panel Mount Gauge for Metric Size Panel Cutouts
- Unit of outer Scale: psi / -inHg
- Measuring range: gauge pressure range
- Scale range: 0/30 psi
- 2nd Scale / Special Scale: 2nd scale kPa
- Process Connection: 1/8 NPT
- Connector location: center back mount
- Restrictor: Brass, D 0.3
- Case: Black plastic
- Movement: Standard
- Window: Plastic, clear
- Pointer: Plastic, Black
- Bezel ring: Stainless Steel, Crimped
- +/- 3/2/3% (ASME B40.100 Grade B)
- single packing
- Mounting flange/bracket: Round u-clamp bracket, zinc-plated steel
- Process connection surface area: brass
- Dial: Plastic, white, with stop-pin
- US-Standard
- color for 1.scale (outside): black
- dial background: White
- individual text for dial: *STEAM* ABOVE POINTER AXIS;
- Manufacturer logo: *WIKA®*
- stop pin on dial: at zero
- Nominal Size: 1.5"
The models 111.16 and 111.26 have been specifically designed for panel mounting and therefore feature a back mount process connection.
The model 111 pressure gauges are based on the proven Bourdon tube measuring system. On pressurisation, the deflection of the Bourdon tube, proportional to the incident pressure, is transmitted to the movement via a link and indicated.
For easy installation, the plastic cases of the panel mounting series are already equipped with a mounting flange.
The model 111.16 Bourdon tube pressure gauge can be fitted to the panel by means of a mounting bracket (accessory). The model 111.26 is mounted to the panel by "snap-in mounting" using lateral locating lugs at the case. In addition, metallised front bezels can be supplied for the model 111.26.
The panel mounting series of model 111 is also available in customer-specific versions, e.g. with individual dial layout.
Applications
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Heating and air-conditioning technology
- Small-capacity compressors
- Drink dispensers
- Medical engineering
Features
- Type 111.16 Panel Mount Gauge for Metric Size Panel Cutouts
- Unit of outer Scale: psi / -inHg
- Measuring range: gauge pressure range
- Scale range: 0/30 psi
- 2nd Scale / Special Scale: 2nd scale kPa
- Process Connection: 1/8 NPT
- Connector location: center back mount
- Restrictor: Brass, D 0.3
- Case: Black plastic
- Movement: Standard
- Window: Plastic, clear
- Pointer: Plastic, Black
- Bezel ring: Stainless Steel, Crimped
- +/- 3/2/3% (ASME B40.100 Grade B)
- single packing
- Mounting flange/bracket: Round u-clamp bracket, zinc-plated steel
- Process connection surface area: brass
- Dial: Plastic, white, with stop-pin
- US-Standard
- color for 1.scale (outside): black
- dial background: White
- individual text for dial: *STEAM* ABOVE POINTER AXIS;
- Manufacturer logo: *WIKA®*
- stop pin on dial: at zero
- Nominal Size: 1.5"
Specifications
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psi |
| Gauge: 2nd Scale | kPa |
| Gauge: Process Connection Location | Center Back Mount |
| Gauge: Case Material | Plastic |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 1-1/2 in (38 mm) |
| Gauge: Process Connection Size | 1/8 NPT |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 111.16PM |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
