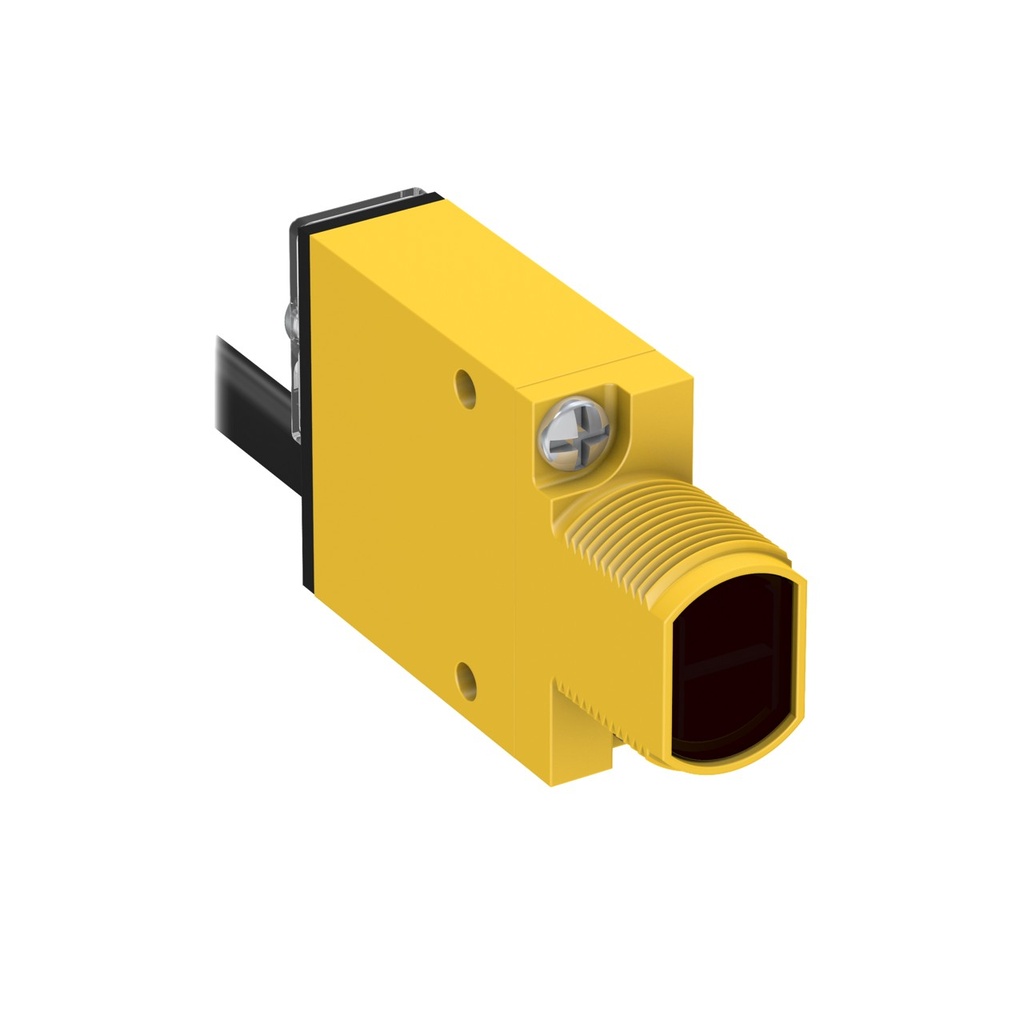

5-15V Cabled 300 Micro Sec Response (SM312LVMHS-50248)
Representative photo. Please check item description for details.

5-15V Cabled 300 Micro Sec Response (SM312LVMHS-50248)

https://www.branom.com/web/image/product.template/203864/image_1920?unique=c26756c
(0 review)

Features:

    SM312LVMHS-50248 5-15V CABLED 300 MICRO SEC RESPONSE
  • Lens Material: Acrylic
  • Power Supply: 5-15 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 5000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.3 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
