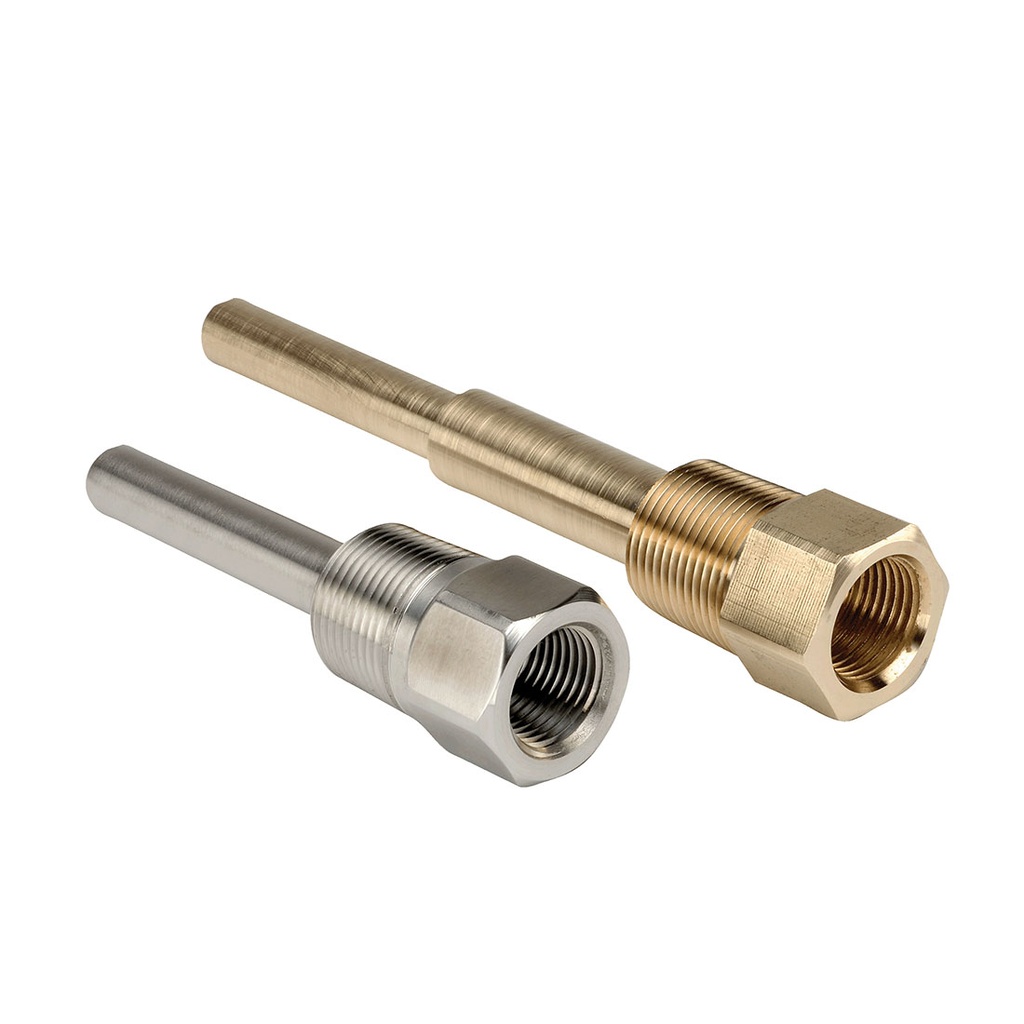

50 Series Stepped Shank Thermowell, 1/2" NPT, 316 SS to 1/2" NPT-Male, 12" Stem
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
Applications:
- Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity
- HVAC
- Petrochemical
- Oil and gas
- Process (flanged thermowells)
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
Applications:
- Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity
- HVAC
- Petrochemical
- Oil and gas
- Process (flanged thermowells)
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

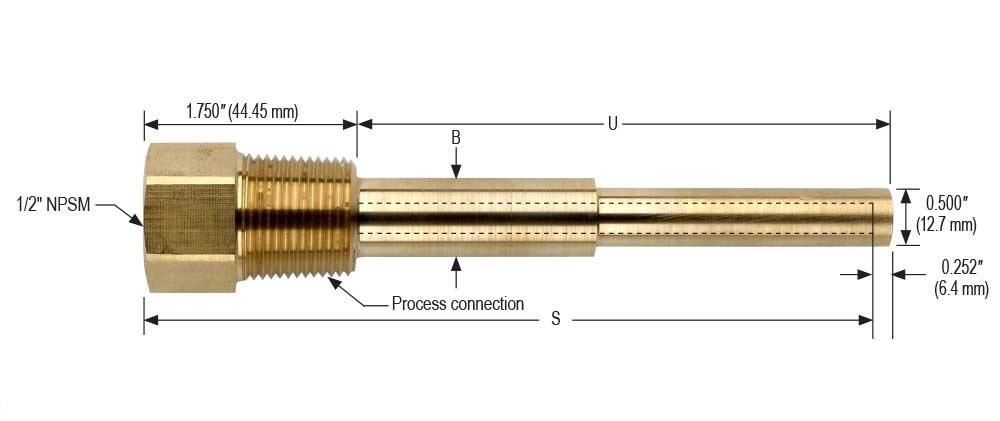

Specifications
| Thermowells: Brand | Noshok |
| Thermowells: Process Conn. Size | 1/2 in NPT |
| Thermowells: Instrument Conn. Size | 1/2 in NPTSM |
| Thermowells: Body Material | Stainless Steel |
| Thermowells: Pressure Rating | High (> 5000 psi) |
| Thermowells: Style | Stepped Shank |
| Thermowells: Max Shank Diameter | .750 in |
| Thermowells: Media | Oil, Gas |
| Thermowells: Stem Length | 12 in |
| Thermowells: Bore Size | 0.260 in |
