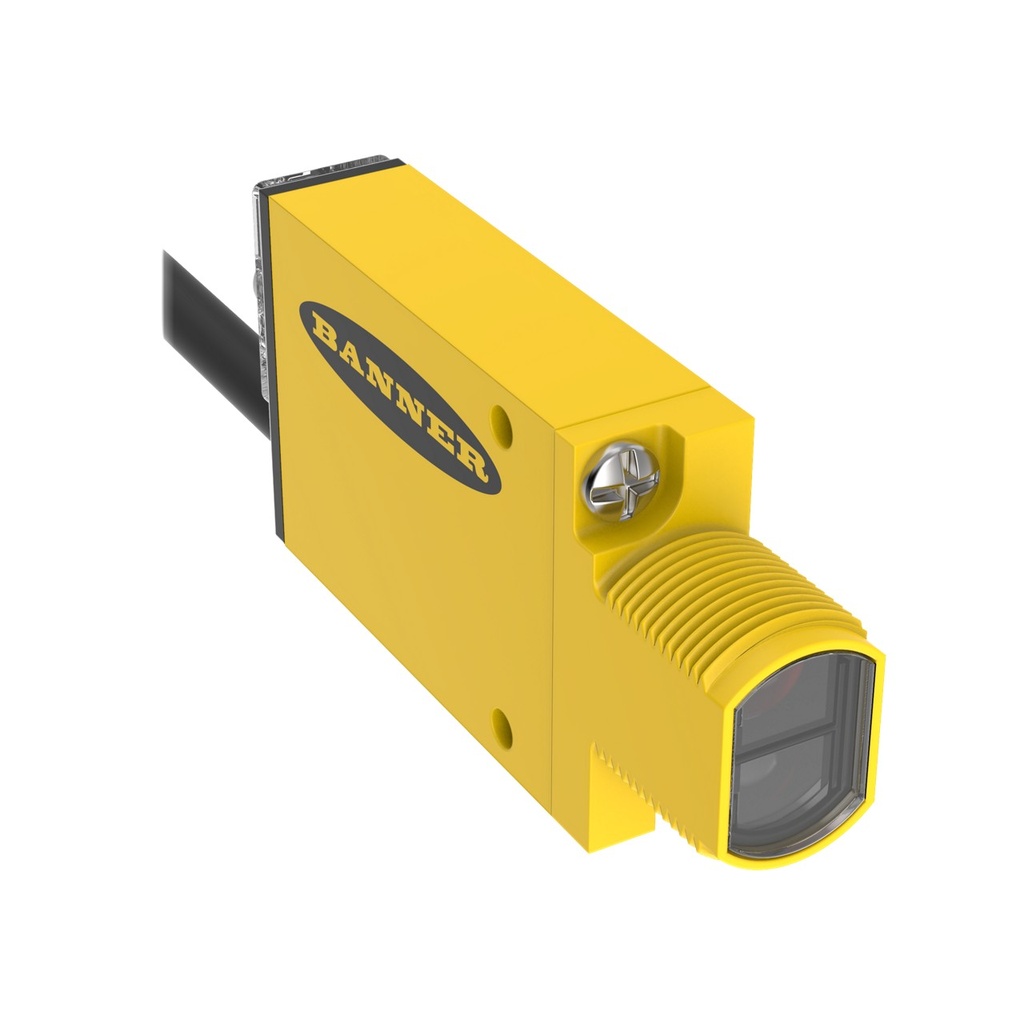

MINI-BEAM: Polarized Retro (SM2A312LPQDP)

https://www.branom.com/web/image/product.template/28100/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Polarized Retro
  • Range: 10 mm
  • 3 m
  • Input: 24-240V ac
  • Output: SPST Solid-state 2-wire
  • 6 in Pigtail QD Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1300
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Number of Pins: 3
  • Output Response Time: 4 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 223.00 223.0 USD $ 223.00

$ 223.00

Not Available For Sale
