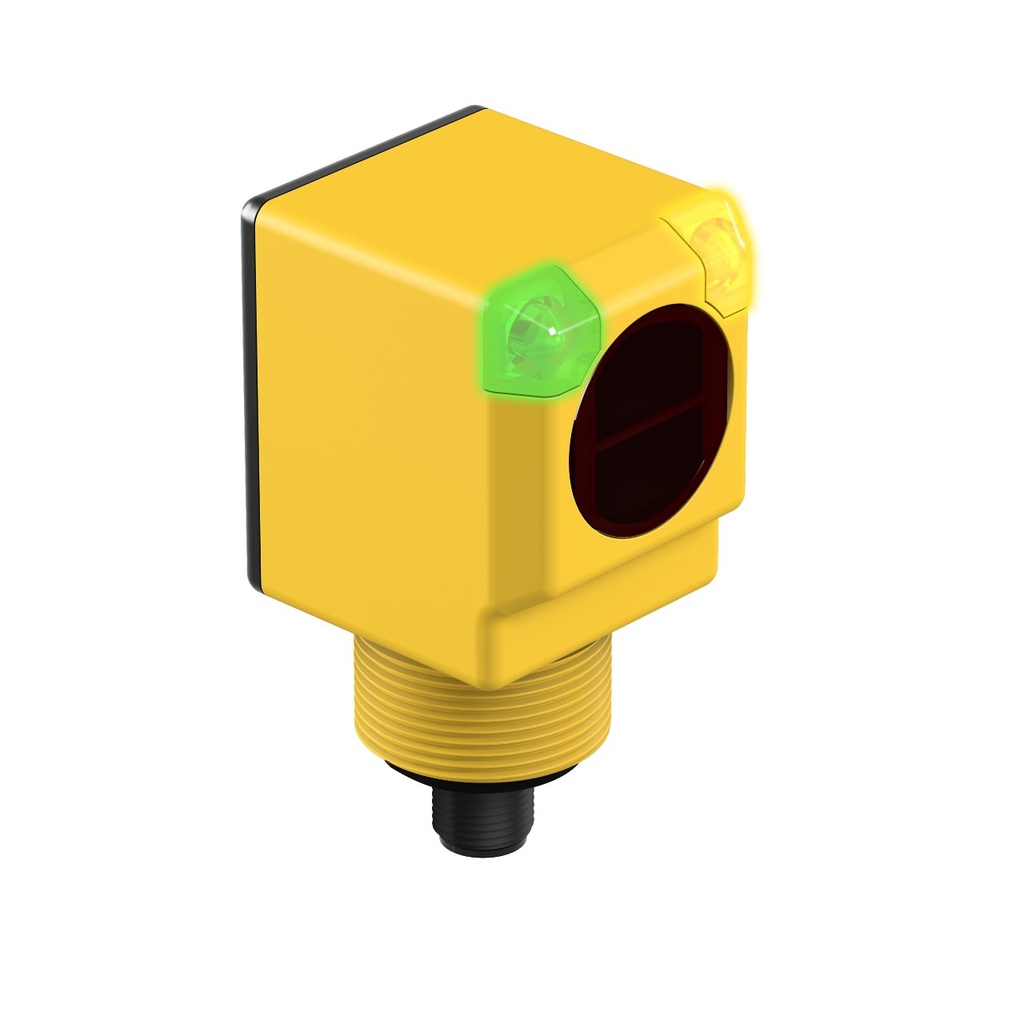

Representative photo. Please check item description for details.

DC PNP LO NC ACT LIKE NO (Q40SP6FF200Q-48325)

https://www.branom.com/web/image/product.template/24825/image_1920?unique=c26756c
(0 review)

Features:

  • Q40SP6FF200Q-48325 DC PNP LO NC ACT LIKE NO
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: N/A
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 750
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 200 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light Operate
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED

$ 168.00 168.0 USD $ 168.00

$ 168.00

Not Available For Sale
