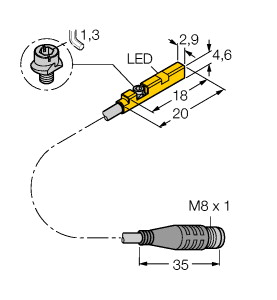

Turck Magnetic Field Sensor, For Pneumatic Cylinders (BIM-UNR-AN6X-0.3-PSG3S W/M)

https://www.branom.com/web/image/product.template/165919/image_1920?unique=c26756c
(0 review)
Magnetic Field Sensor Features
  • For Pneumatic Cylinders
  • Cable length (L) 0.3 m
  • For C-groove cylinders without mounting accessories
  • Optional accessories for mounting on other cylindrical housings.
  • One-hand mounting possible
  • Stable mounting
  • Magneto-resistive sensor
  • DC 3-wire
  • 11…30 VDC
  • NO contact
  • NPN output
  • Pigtail with Ø 8 mm male connector

$ 151.40 151.4 USD $ 151.40

$ 151.40

Not Available For Sale

  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Input Voltage
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Magnetic Field Sensor Features

  • For Pneumatic Cylinders
  • Cable length (L) 0.3 m
  • For C-groove cylinders without mounting accessories
  • Optional accessories for mounting on other cylindrical housings.
  • One-hand mounting possible
  • Stable mounting
  • Magneto-resistive sensor
  • DC 3-wire
  • 11…30 VDC
  • NO contact
  • NPN output
  • Pigtail with Ø 8 mm male connector

Specifications

Case Material Plastic
Measurement Minimum 0
Output Communication Protocol NPN
Input Voltage 11-30 VDC
Country of Origin CH
