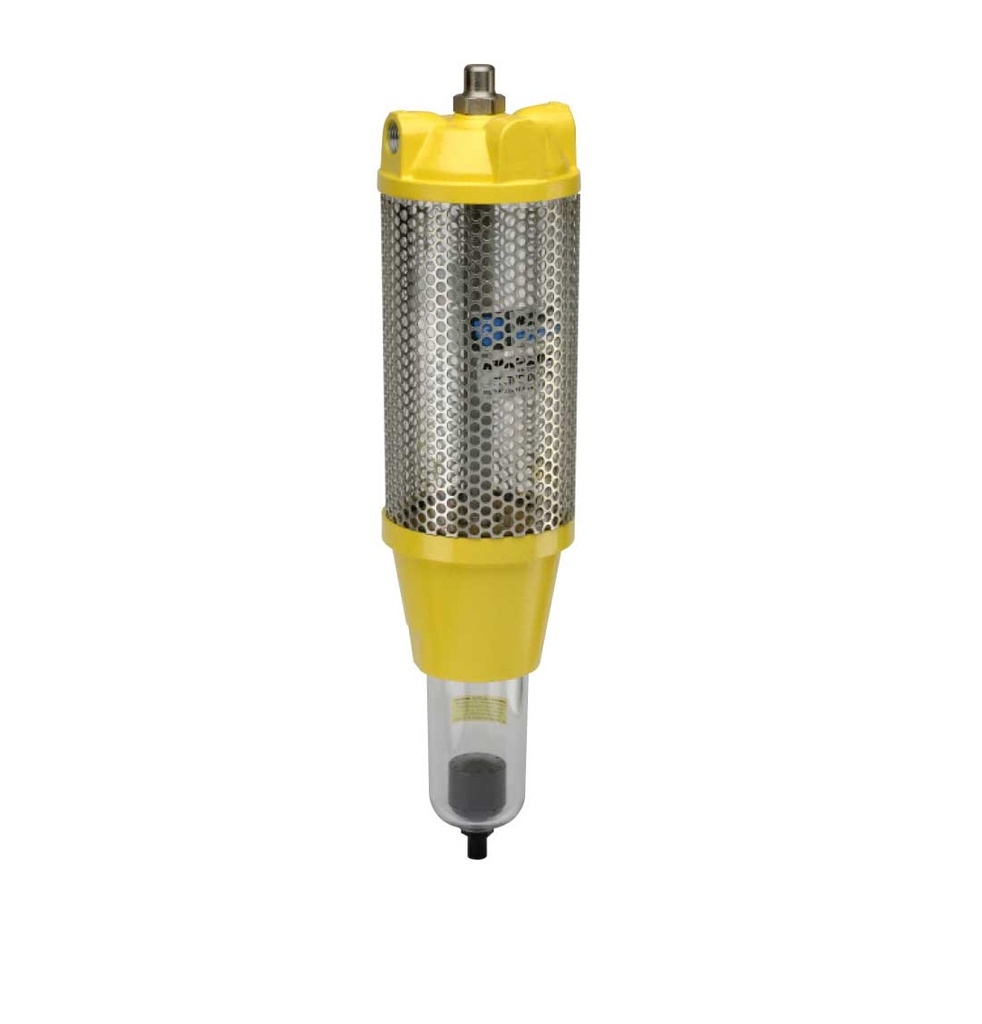

4532 Series Visi-Guard Filter/Dryer 12 SCFM, Polycarbonate Sump, 99.9% Efficiency
- Combination coalescing filter and desiccant dryer provides a complete solution for critical end use applications
- Incorporates a first stage submicron filter element and second stage vapor removal (oil or water) for applications including product packaging and precision laboratory equipment and instrumentation
- Desiccant selection determines application: AC-1 reduces oil vapor to ≤ 0.5 ppm (w/w); water vapor reducing desiccants allow for dew points as low as -100ºF/-73ºC (MS-1) or -50ºF/-45ºC (SG-1)
- Combination coalescing filter and desiccant dryer provides a complete solution for critical end use applications
- Incorporates a first stage submicron filter element and second stage vapor removal (oil or water) for applications including product packaging and precision laboratory equipment and instrumentation
- Desiccant selection determines application: AC-1 reduces oil vapor to ≤ 0.5 ppm (w/w); water vapor reducing desiccants allow for dew points as low as -100ºF/-73ºC (MS-1) or -50ºF/-45ºC (SG-1)
Specifications
| Process Connection Type | NPT |
| Housing Material_ | Aluminum/Acrylic |
| Flow @ 100 psig | 12 SCFM |
| Flow @ 7 kg/cm2 | 340 LPM |
| Flow @ 7 bar | 20 CMH |
| Efficiency | 99.9% |
| Max Inlet Pressure | 150 psi |
