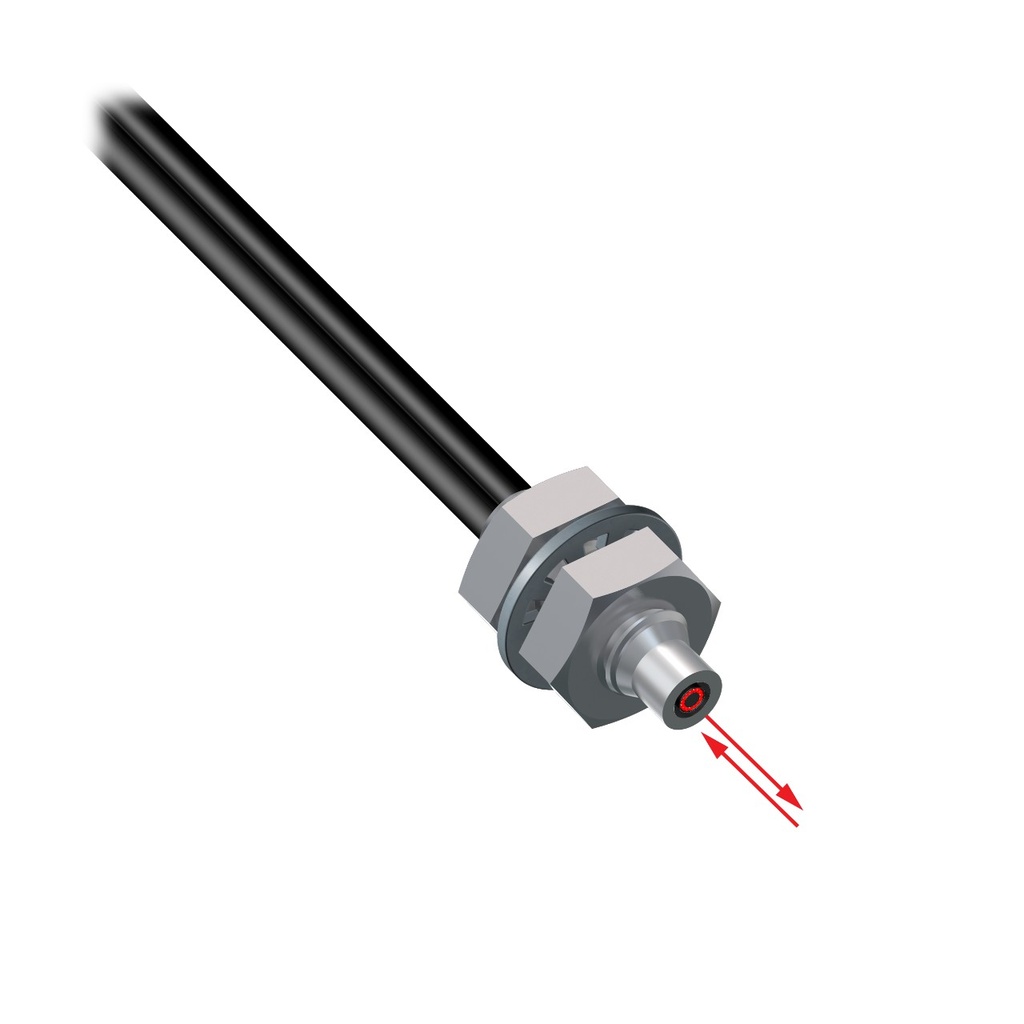

Representative photo. Please check item description for details.

Plastic Fiber, Diffuse Reflective (PBCT430U)

https://www.branom.com/web/image/product.template/24487/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Diffuse Reflective
  • Core Dia.: 1.0 mm & 16 x 0.25 mm
  • Fiber Length 9 m
  • Coaxial, Thread
  • Free cut
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Coaxial
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 153 fbm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M6
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Free Cut
  • Sensing End Material (Specific): Nickel-Plated Brass
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.0 & 16 x 0.1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M6
  • Fiber Length: 9.144 m
  • Fiber Optic Type: Plastic
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Min Repeat Bending Endurance: 10000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 25 mm

$ 170.00 170.0 USD $ 170.00

$ 170.00

Not Available For Sale

    This combination does not exist.
