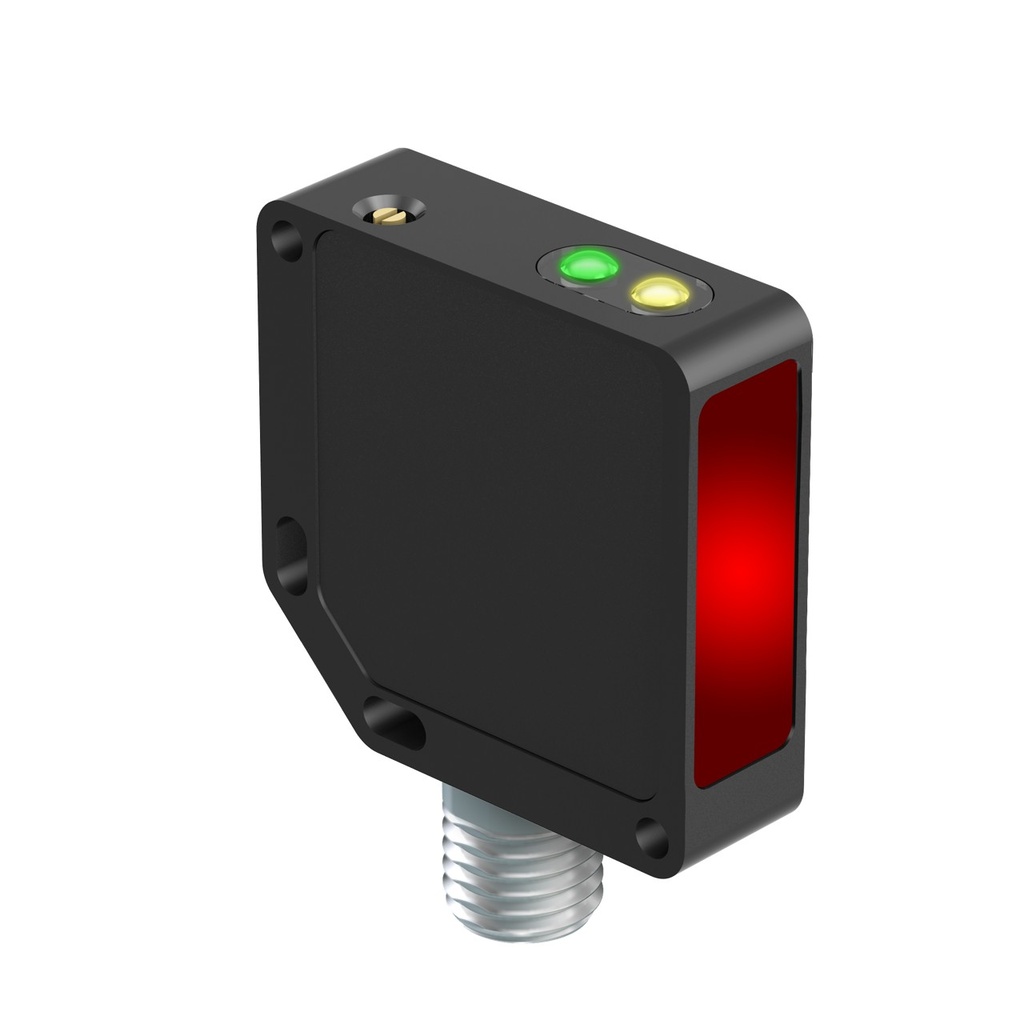

Representative photo. Please check item description for details.

QM42 Series: Emitter (QM426EQ)

https://www.branom.com/web/image/product.template/24419/image_1920?unique=c26756c
(0 review)

Features:

  • QM42 Series: Emitter
  • Range: 10 m
  • Input: 10-30 V dc
  • Output: Not applicable
  • No outputs
  • Euro M12 4-pin Integral QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 120
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 880
  • Housing Style: Rectangular
  • Max Sensing Distance: 10000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 120
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 880
  • Housing Style: Rectangular
  • Max Sensing Distance: 10000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
