TESCOM™ 44-1300 Series Pressure Regulator Valve

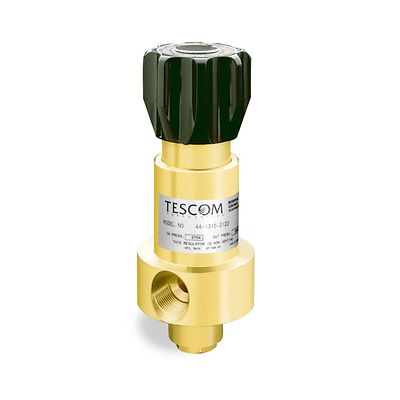

Representative photo. Please check item description for details.

TESCOM™ 44-1300 Series Pressure Regulator Valve

https://www.branom.com/web/image/product.template/543300/image_1920?unique=c26756c
(0 review)

Maximum Inlet PressureStainless Steel Body: 4500 psig / 310 bar, 6000 psig / 414 bar available
Brass Body: 3750 psig / 260 bar, 5000 psig / 345 bar available
Outlet Pressure Ranges0-300, 0-600, 0-1000 and 0-1500 psig / 0-20.7, 0-41.4, 0-69.0 and 0-103 bar
0-2500 psig / 0-172 bar available
Body MaterialBrass, 303 or 316 Stainless Steel
Seat MaterialMain Valve: CTFE (Except: 44-13X2-XXX2, Teflon®)
Vent Valve
Teflon®: 300 and 600 psig / 20.7 and 41.4 bar outlet
CTFE: 1000 and 1500 psig / 69.0 and 103 bar outlet
O-RingsViton-A®
Back-up RingsTeflon®
GasketsCTFE
Remaining Parts300 Series Stainless Steel, 17-4, 17-7 Stainless Steel, Teflon® and Brass
Port Size & Type1/2, 3/4
SAE, NPTF, MS33649, BSPP
1/2, 1
Flange
Operating Temperature-15°F to 220°F / -26°C to 104°C
Flow Capacity1/4 Main Valve: Cv = 0.8
3/8 Main Valve: Cv = 2.0
Load TypeSpring, Dome, Air
