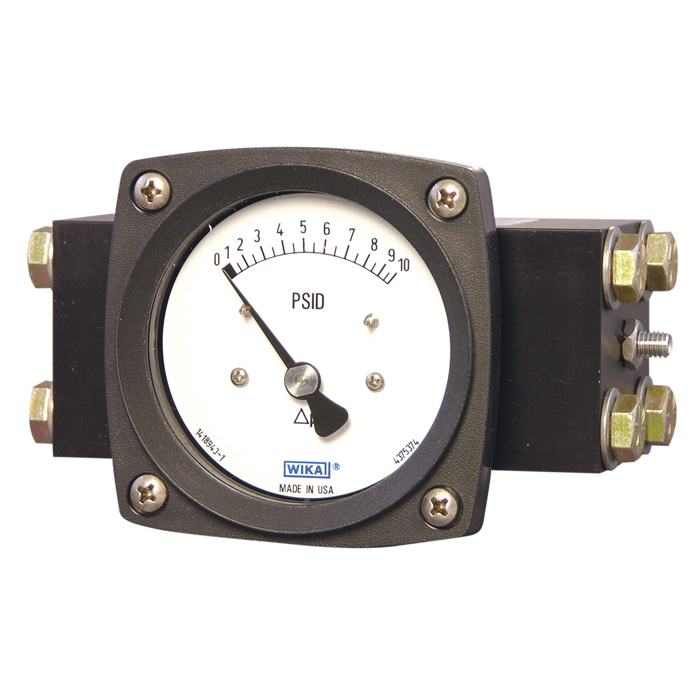

Wika 700.05 Series 4.5" Dry Differential Pressure Gauge, 0 to 10 psid, 1/4 NPTF, Back Entry
Applications
- For use in measurement applications requiring high differential / static process pressures.
- Suitable for applications with particulate matter present in liquid/gas media or when separation of the media is required.
Product features
- Magnetic piston sensing element
- Rugged thermoplastic case
- Buna-N separating diaphragm
- 3000 psig (200 barg) maximum working pressure
- Differential pressure ranges to 100 psid (7 bard)
Features
- 700.05 4.5 0-10PSID 1/4 B SS
- 700.05 4.5 0-10PSID 1/4 B SS DIFFERENTIAL PRESSURE GAUGE; 700.05 4.5 0-10PSID 1/4"NPT FEMALE; *WIKA*, *R* IN BLUE PMS 286; *SERIAL NUMBER* IN BLACK; WETTED PARTS STAINLESS STEEL; BACK CONNECTION; CASE BLACK, POCAN; BUNA N O-RING/MEMBRANE; SAFE WORKING PRESSURE 3000PSI POINTER ALUMINUM, BLACK; MAGNETIC POINTER ACTIVATION; DIAL ALUMINUM, WHITE; WINDOW PMMA; ACCURACY +/-5% OF SPAN ASCENDING; SINGLE PACKAGING; WIKA LABEL INFO:700.05 4.5 0-10PSID 1/4"NPT FEMALE 4375799 APPROVED: ;
Applications
- For use in measurement applications requiring high differential / static process pressures.
- Suitable for applications with particulate matter present in liquid/gas media or when separation of the media is required.
Product features
- Magnetic piston sensing element
- Rugged thermoplastic case
- Buna-N separating diaphragm
- 3000 psig (200 barg) maximum working pressure
- Differential pressure ranges to 100 psid (7 bard)
Features
- 700.05 4.5 0-10PSID 1/4 B SS
- 700.05 4.5 0-10PSID 1/4 B SS DIFFERENTIAL PRESSURE GAUGE; 700.05 4.5 0-10PSID 1/4"NPT FEMALE; *WIKA*, *R* IN BLUE PMS 286; *SERIAL NUMBER* IN BLACK; WETTED PARTS STAINLESS STEEL; BACK CONNECTION; CASE BLACK, POCAN; BUNA N O-RING/MEMBRANE; SAFE WORKING PRESSURE 3000PSI POINTER ALUMINUM, BLACK; MAGNETIC POINTER ACTIVATION; DIAL ALUMINUM, WHITE; WINDOW PMMA; ACCURACY +/-5% OF SPAN ASCENDING; SINGLE PACKAGING; WIKA LABEL INFO:700.05 4.5 0-10PSID 1/4"NPT FEMALE 4375799 APPROVED: ;
Specifications
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psid |
| Gauge: Process Connection Location | 2 x Back Entry |
| Gauge: Case Material | Stainless Steel |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Process Connection Size | 1/4 NPT Female |
| Gauge: Accuracy | ±5% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 700.05 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
