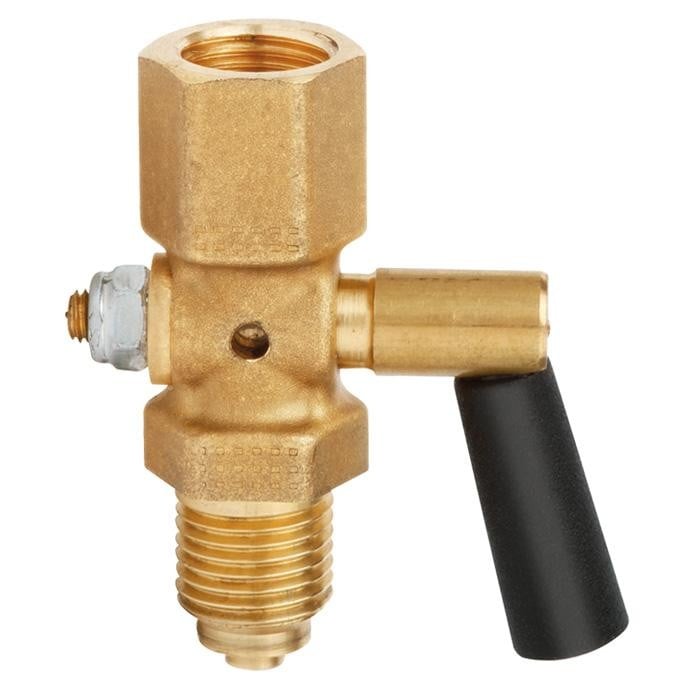

Wika 910.10 Series Gauge Cock, Lever Handle, Brass, 1/4" NPTF to 1/4" NPTF, 150 PSI - 200 Piece Minimum
Pressure gauge cocks provide the opportunity to either vent the connected pressure gauge according to the position of the handle (venting position), i.e. put it into a pressure-free state, or to vent the pressure measuring instrument under pressure (operating position) or to let the medium escape (blow position). For pressures higher than those in the data sheet, pressure gauge valve must be used.
Applications
- Shut-off device for pressure gauges, for measurement of liquids, gases and vapours
Special Features
- Version per DIN 16261, DIN 16262 and DIN 16263
- Nominal pressures to 25 bar
- Operating temperature up to 50 °C
Features
- 910.10 L HANDLE BR COCK 1/4NPTFX 1/4NPTF
- 910.10 L HANDLE BR COCK 1/4NPTFX 1/4NPTF 910.10 PRESSURE GAUGE COCK
- MATERIAL:BRASS
- RATING 200 PSI
Pressure gauge cocks provide the opportunity to either vent the connected pressure gauge according to the position of the handle (venting position), i.e. put it into a pressure-free state, or to vent the pressure measuring instrument under pressure (operating position) or to let the medium escape (blow position). For pressures higher than those in the data sheet, pressure gauge valve must be used.
Applications
- Shut-off device for pressure gauges, for measurement of liquids, gases and vapours
Special Features
- Version per DIN 16261, DIN 16262 and DIN 16263
- Nominal pressures to 25 bar
- Operating temperature up to 50 °C
Features
- 910.10 L HANDLE BR COCK 1/4NPTFX 1/4NPTF
- 910.10 L HANDLE BR COCK 1/4NPTFX 1/4NPTF 910.10 PRESSURE GAUGE COCK
- MATERIAL:BRASS
- RATING 200 PSI
