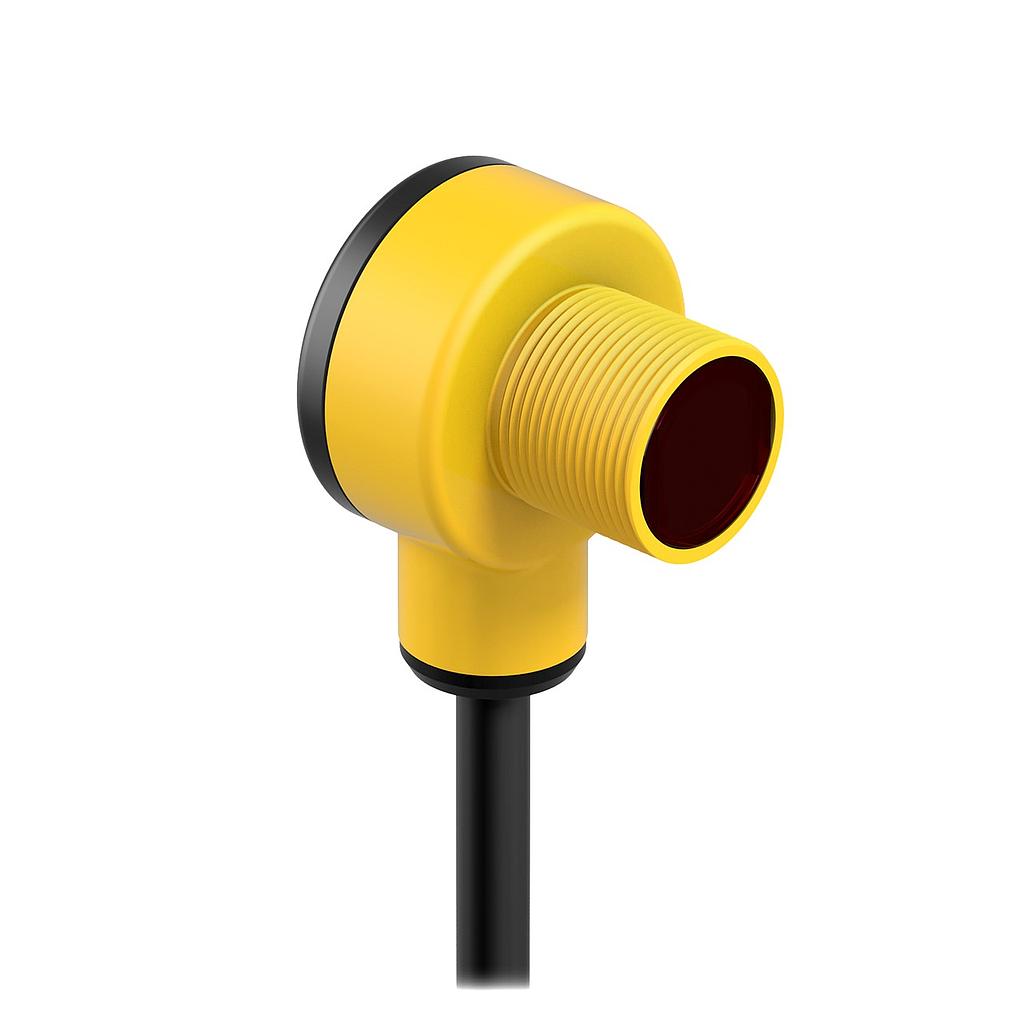

EZ-BEAM T18 Series: Threaded R-Angle Polar Retro (T18SN6LPM5V)

https://www.branom.com/web/image/product.template/24338/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-BEAM T18 Series: Threaded R-Angle Polar Retro
  • Range: 2 m
  • Input: 5V dc (Lit 43417)
  • Output:NPN
  • Quick-Disconnect Connector
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 5 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 750
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED

$ 143.00 143.0 USD $ 143.00

$ 143.00

Not Available For Sale
