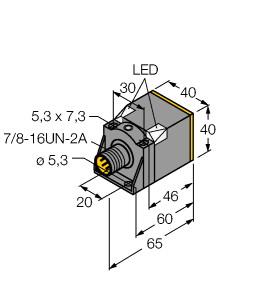

Turck Inductive Sensor, With Extended Switching Distance (NI35U-CK40-ADZ30X2-B1131/S949)
Inductive Sensor Features
- With Extended Switching Distance
- Rated switching distance 35 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 5 directions
- Plastic
- PBT‐GF30‐V0
- Male connector
- stainless steel A2 1.4301 (AISI 304)
- Only use the included plastic clip BS4-CK40
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Large coverage
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire
- 20…250 VAC
- DC 2-wire
- 10…300 VDC
- NO contact
- 7/8" male connector
Inductive Sensor Features
- With Extended Switching Distance
- Rated switching distance 35 mm
- Non-flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 5 directions
- Plastic
- PBT‐GF30‐V0
- Male connector
- stainless steel A2 1.4301 (AISI 304)
- Only use the included plastic clip BS4-CK40
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Large coverage
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire
- 20…250 VAC
- DC 2-wire
- 10…300 VDC
- NO contact
- 7/8" male connector
Specifications
| Measurement Maximum | 0 |
| Case Material | Plastic |
| Measurement Minimum | 0 |
| Input Voltage | 10-300 VDC / 20-250 VAC |
| Country of Origin | DE |
