LS-3 ALL POLYSULFONE FLOAT, .75 MINIMUM SPECIFIC GRAVITY

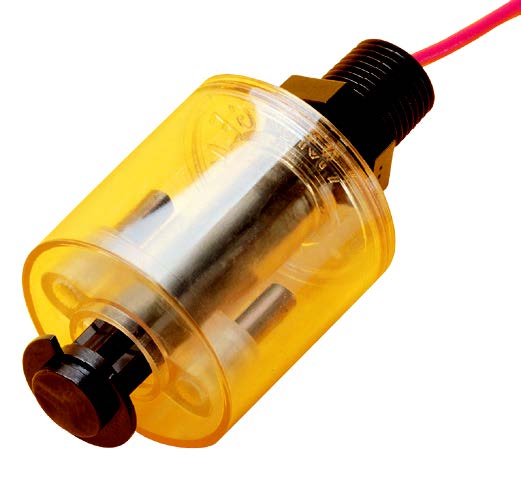

Representative photo. Please check item description for details.

LS-3 ALL POLYSULFONE FLOAT, .75 MINIMUM SPECIFIC GRAVITY

https://www.branom.com/web/image/product.template/193580/image_1920?unique=c26756c
(0 review)

Actuation Level 3/4"
Switch Operation Normally Open (Reversible)
Min. Liquid 0.75
Stem Material Polysulfone
Float Material Polysulfone
Float Diameter 1"
Mounting Size 1/8" NPT Male
Mounting Vertical
Switch Type SPST (20 VA)
Input N/A
Output N/A
Maximum Pressure (PSI) 50
Minimum Temperature (°F) -40
Maximum Temperature (°F) 225
Electrical Termination 22 AWG, 24-16" long PVC leads
Wetted Materials Polysulfone
Approvals UL Recognized, CSA Listed, CE
Minimum Qty (per Release) 1
Weight (LBS) 0.125


$ 62.05 62.05 USD $ 62.05

$ 62.05

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Actuation Level 3/4"
Switch Operation Normally Open (Reversible)
Min. Liquid 0.75
Stem Material Polysulfone
Float Material Polysulfone
Float Diameter 1"
Mounting Size 1/8" NPT Male
Mounting Vertical
Switch Type SPST (20 VA)
Input N/A
Output N/A
Maximum Pressure (PSI) 50
Minimum Temperature (°F) -40
Maximum Temperature (°F) 225
Electrical Termination 22 AWG, 24-16" long PVC leads
Wetted Materials Polysulfone
Approvals UL Recognized, CSA Listed, CE
Minimum Qty (per Release) 1
Weight (LBS) 0.125

Specifications

Measurement Maximum 0
Process Connection Type NPT-Male
Measurement Minimum 0
