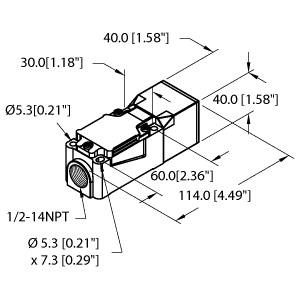

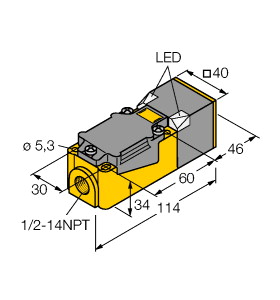

Turck Inductive Sensor, With Extended Temperature Range (BI15-CP40-FDZ30X2/S10-S97)
Inductive Sensor Features
- With Extended Temperature Range
- Rated switching distance 15 mm
- Flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Temperatures up to -40 °C
- AC 2-wire
- 20…250 VAC
- DC 2-wire
- 10…300 VDC
- NC/NO programmable
- Terminal chamber
Inductive Sensor Features
- With Extended Temperature Range
- Rated switching distance 15 mm
- Flush
- Rectangular
- height 40 mm
- Variable orientation of active face in 9 directions
- Plastic
- PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Temperatures up to -40 °C
- AC 2-wire
- 20…250 VAC
- DC 2-wire
- 10…300 VDC
- NC/NO programmable
- Terminal chamber
Specifications
| Case Material | Plastic |
| Input Voltage | 10-300 VDC / 20-250 VAC |
