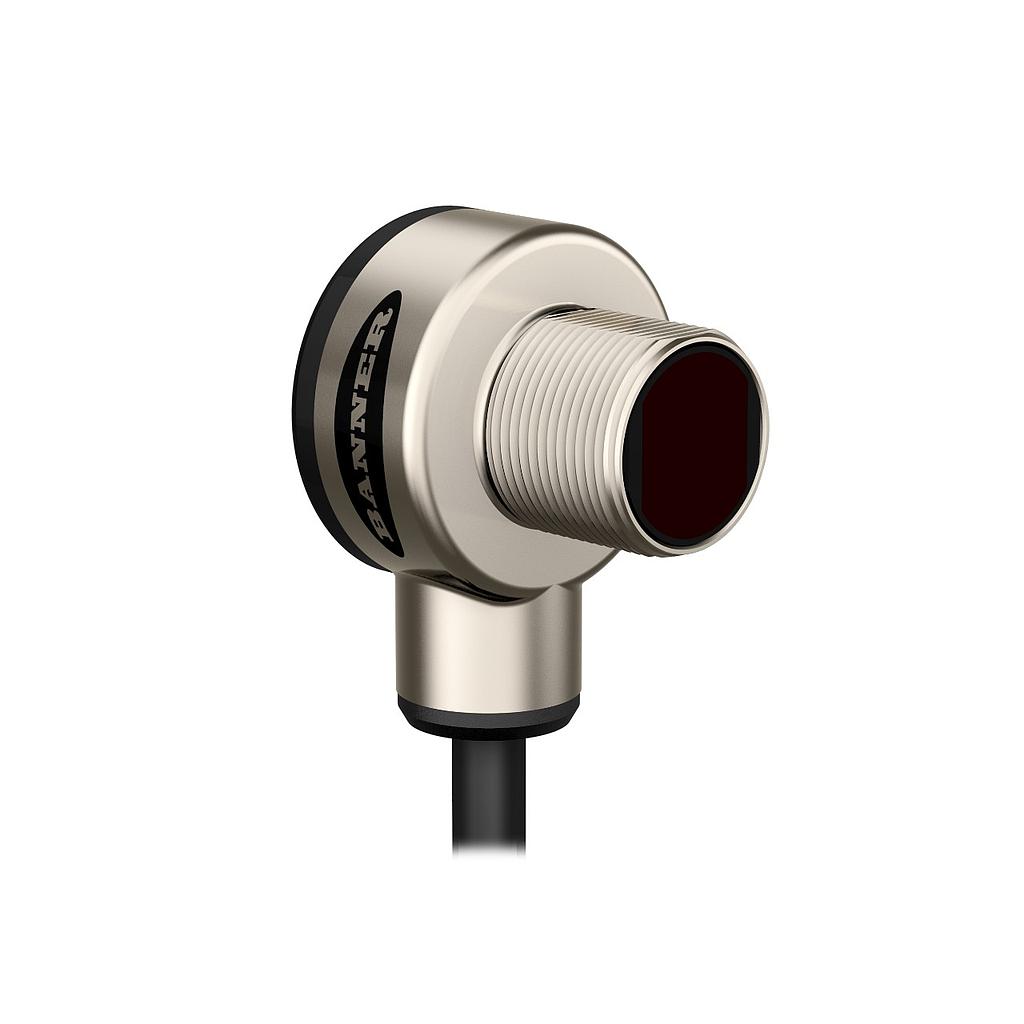

EZ BEAM TM18: Receiver (TM18RP6RQ5)

https://www.branom.com/web/image/product.template/24056/image_1920?unique=c26756c
(0 review)

Features:

  • EZ BEAM TM18: Receiver
  • Range: 20m
  • Input:10-30V dc
  • Outputs: PNP Dark Operate
  • 6 in. Pigtail EURO-Style Pigtail QD Connector
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Polycarbonate
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 190
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 20000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Die-Cast with Nickel-Plating
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms ON/0.75 ms OFF
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
